Product Description

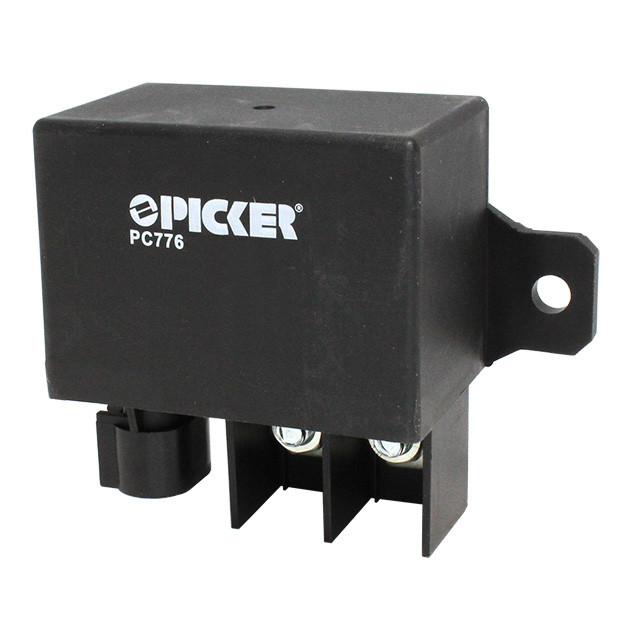

Description: Automotive Relays • Coil Voltage: 24 VDC • Contact Configuration: 1X SPST Crossbar • Contact Current: 130 A • Coil Type: Single Side Stable • Mounting : Flange • Enclosure: Sealed • Snubber Components: Diode
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 24 VDC |
| Contact Configuration | 1X SPST Crossbar |
| Contact Current | 130 A |
| Coil Type | Single Side Stable |
| Mounting | Flange |
| Enclosure | Sealed |
| Snubber Components | Diode |
| Material | AgSnO2 |
| Initial Contact Resistance | 30 m? Max @ 0.1 A, 6 VDC |
| Service Life | Mechanical 1 x 107 operations Electrical 5 x 104 operations |
| Operate Time | 10 msec Typical |
| Release Time | 10 msec Typical |
| Insulation Resistance | 100 M? Min @ 500VDC |
| Dielectric Strength | 50 Hz 1000 VAC, 1 Min Between Contact and Coil 50 Hz 500 V, 1 Min Between Contacts |
| Shock Resistance | 6 m/s2 20 msec |
| Vibration Resistance | 10-200 Hz Double Amplitude 1.5mm |
| Terminal Strength | 8 N |
| Power Consumption | 12V: 3.9 W, 24V: 4.1 W |
| Operating Temperature | -40°C to 125°C |
| Storage Temperature | -40°C to 155°C |
| Series Features |
| PC776 Series 130 Amp Screw Clamp Automotive Relay |
| Series Description: |
|
