Product Description
Description: Automotive Relays • Coil Voltage: 12 VDC • Contact Configuration: 1A SPST-NO Bifurcated • Contact Current: 75 A • Coil Type: Single Side Stable • Mounting : Flange • Enclosure: Dust Cover IP54 Rated • Coil Power: 2.9 Watts • Snubber Components: None
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 1A SPST-NO Bifurcated |
| Contact Current | 75 A |
| Coil Type | Single Side Stable |
| Mounting | Flange |
| Enclosure | Dust Cover IP54 Rated |
| Coil Power | 2.9 Watts |
| Snubber Components | None |
| Material | W, AgSnO2 |
| Initial Contact Resistance | 50 m? Max @ 0.1 A, 6 VDC |
| Service Life | Mechanical 1 x 106 operations Electrical 1 x 105 operations |
| Operate Time | 7 msec Typical |
| Release Time | 5 msec Typical |
| Insulation Resistance | 100 M? Min @ 500VDC |
| Dielectric Strength | 50 Hz 750 V, 1 Min Between Contact and Coil 50 Hz 500 V, 1 Min Between Contacts |
| Shock Resistance | 147 m/s2 11 msec |
| Vibration Resistance | 10-40 Hz Double Amplitude 1.5mm |
| Terminal Strength | 100 N |
| Power Consumption | 2.88 W |
| Operating Temperature | -40°C to 125°C |
| Storage Temperature | -40°C to 155°C |
| Series Features |

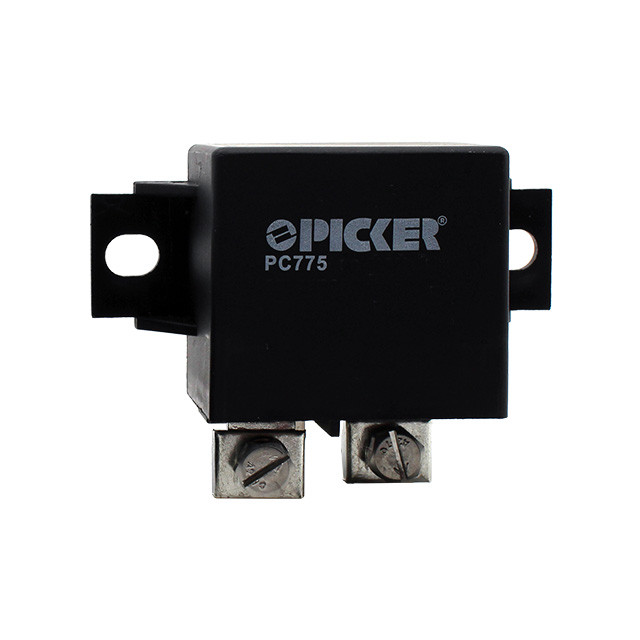

| PC775 Series 75 Amp Screw Terminal Automotive Relay |
