Product Description

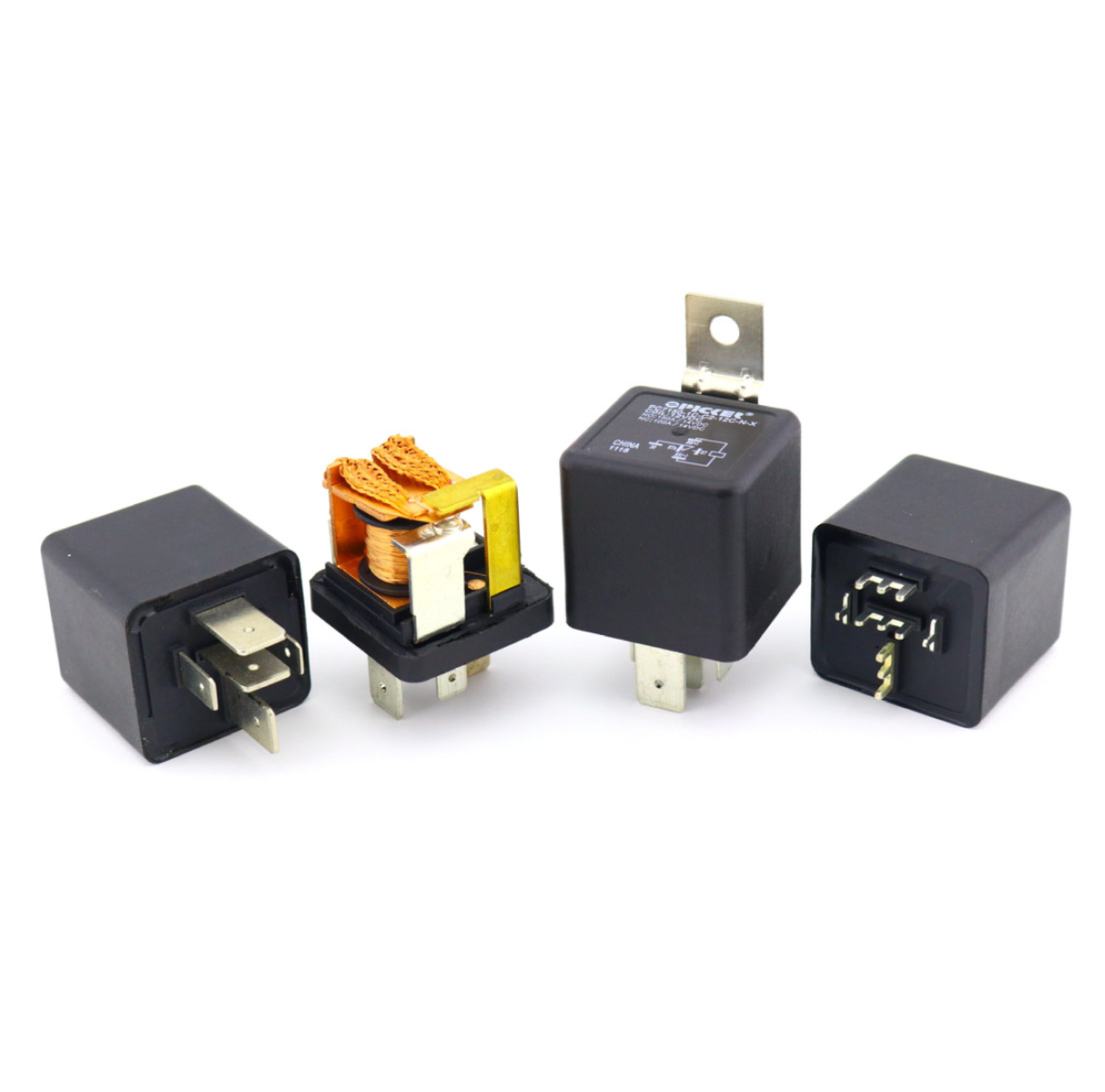

Description: Automotive Relays • Coil Voltage: 48 VDC • Contact Configuration: 1C SPDT • Contact Current: 100 A • Coil Type: Single Side Stable • Mounting : PC Pins • Enclosure: Dust Cover • Parallel Component: Diode • Terminal Plating: PC PIN Version
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 48 VDC |
| Contact Configuration | 1C SPDT |
| Contact Current | 100 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pins |
| Enclosure | Dust Cover |
| Parallel Component | Diode |
| Terminal Plating | PC PIN Version |
| Operate Time | 7 msec Typical |
| Release Time | 2 msec Typical |
| Insulation Resistance | 100 M? min at 500VDC, |
| Dielectric Strength | 50 Hz 1000 V Between Contact and Coil 50 Hz 750 V Between Contacts |
| Shock Resistance | 147 m/s2 11 msec |
| Vibration Resistance | 10-40 Hz Double Amplitude 1.5mm |
| Terminal Strength | 30N |
| Solderability | 2600C for 5 seconds |
| Power Consumption | 2.9 W |
| Operating Temperature | -40°C to 125°C |
| Storage Temperature | -40°C to 155°C |
| Relative Humidity | 85% at 40°C |
| Flammability | UL-94-VO Meets FMVSS 302 |
| Series Features |
| PC7150 Series 150/100 Amp Automotive Plug-In / PCB Maxi ISO Relay |
