Product Description

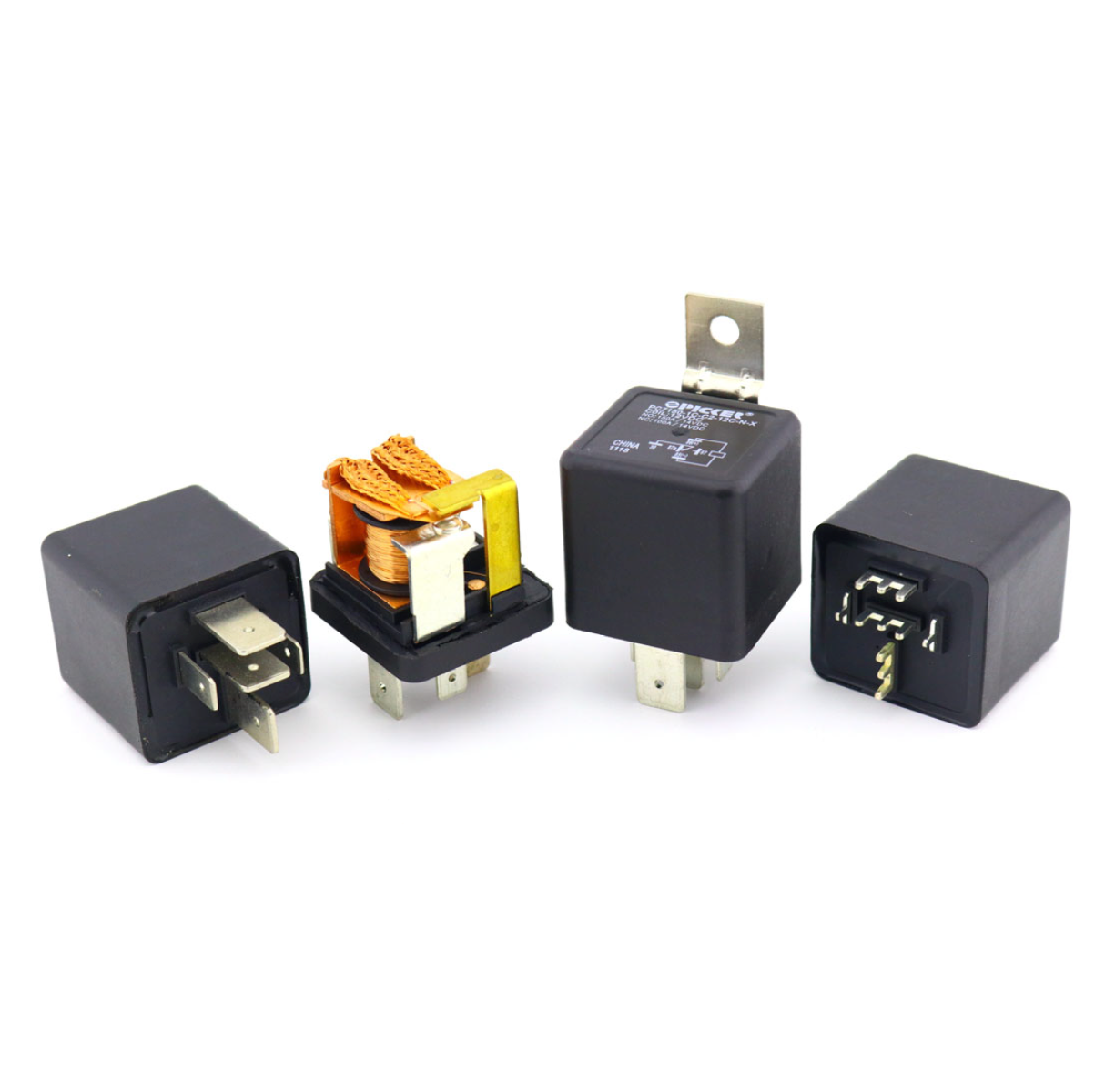

Description: Automotive Relays • Coil Voltage: 24 VDC • Contact Configuration: 1A SPST-NO • Contact Current: 150 A • Coil Type: Single Side Stable • Mounting : Metal Bracket • Enclosure: Flux Tight • Parallel Component: None • Terminal Plating: Nickel Plated Terminals Standard on all Plug In Models
| Product Information | | Resources |
| Manufacturer | Picker | | Product Category | Relays | | Product Sub Category | Automotive Relays | | Series | PC7150 Series |
| | |
Product Attribute
| Attribute Value
|
| Coil Voltage | 24 VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Current | 150 A |
| Coil Type | Single Side Stable |
| Mounting | Metal Bracket |
| Enclosure | Flux Tight |
| Parallel Component | None |
| Terminal Plating | Nickel Plated Terminals Standard on all Plug In Models |
| Operate Time | 7 msec Typical |
| Release Time | 2 msec Typical |
| Insulation Resistance | 100 M? min at 500VDC, |
| Dielectric Strength | 50 Hz 1000 V Between Contact and Coil
50 Hz 750 V Between Contacts |
| Shock Resistance | 147 m/s2 11 msec |
| Vibration Resistance | 10-40 Hz Double Amplitude 1.5mm |
| Terminal Strength | 30N |
| Solderability | 2600C for 5 seconds |
| Power Consumption | 2.9 W |
| Operating Temperature | -40°C to 125°C |
| Storage Temperature | -40°C to 155°C |
| Relative Humidity | 85% at 40°C |
| Flammability | UL-94-VO Meets FMVSS 302 |
| PC7150 Series 150/100 Amp Automotive Plug-In / PCB Maxi ISO Relay |
| Series Description: |
- Popular Maxi ISO Automotive Relay Footprint
- 1A and 1C Contact Forms Available
- Contact Switching Capacity up to 450 Amps
- 150 Amps Continuous Carrying Current
- Up to 1250C Operating T emperature
- Internal Diodes or Resistors Available
- Plain Case, Metal Mounting Bracket and PC Pins
- Sockets Available
- Lead Free and RoHS Compliant
|
RoHS Compliant
