To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC537-1A-24C-X |
| Description | Automotive Relay; 1A SPST-NO; 30 A; 24VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

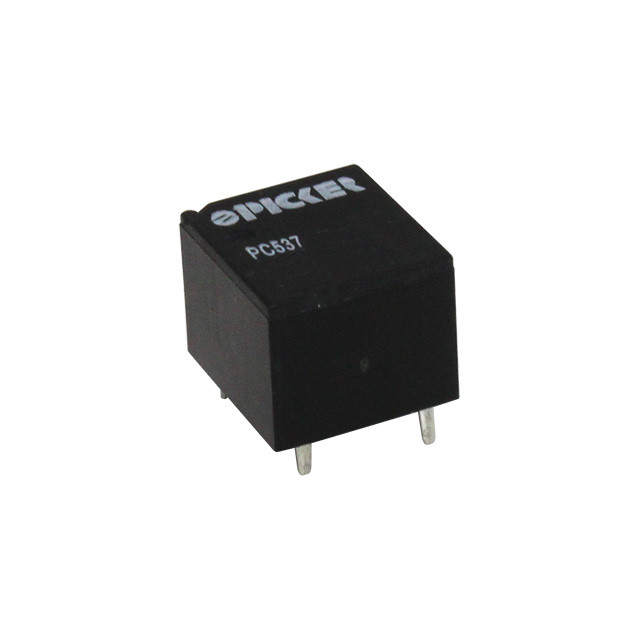

The Picker Components PC537-1A-24C-X is an automotive relay with 1A SPST-NO contacts rated 30 A, switching up to 28VDC. It runs on a 24VDC coil (non-latching).
Mounting: through hole, PC pin terminals. Construction: dust cover. Contact material: AgSnO2.
Coil current 23.8 mA. Must operate at 13.8 V max and release at 3 V min. Operate time 4 ms, release time 1.5 ms.
Contact resistance max. 100 mΩ. Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +105 °C; storage -40 to +155 °C.
| Category | |
| Manufacturer | Picker Components |
| Contact Configuration | 1A SPST-NO |
| Coil Voltage | 24VDC |
| Contact Rating (A) | 30 |
| Switching Voltage | 28VDC |
| Termination Style | PC Pin |
| Mounting Type | Through Hole |
| Seal Rating | Dust Cover |
| Coil Type | Non Latching |
| Contact Material | AgSnO2 |
| Contact Resistance | Max. 100 mΩ |
| Coil Current (mA) | 23.8 |
| Must Operate Voltage | 13.8 V |
| Must Drop-Out Voltage | 3 V |
| Coil Suppression | None |
| Operate Time (ms) | 4 |
| Release Time (ms) | 1.5 |
| Operating Temperature | -40...+105 (-40...+155) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Number of Poles | 1 |
