Product Description

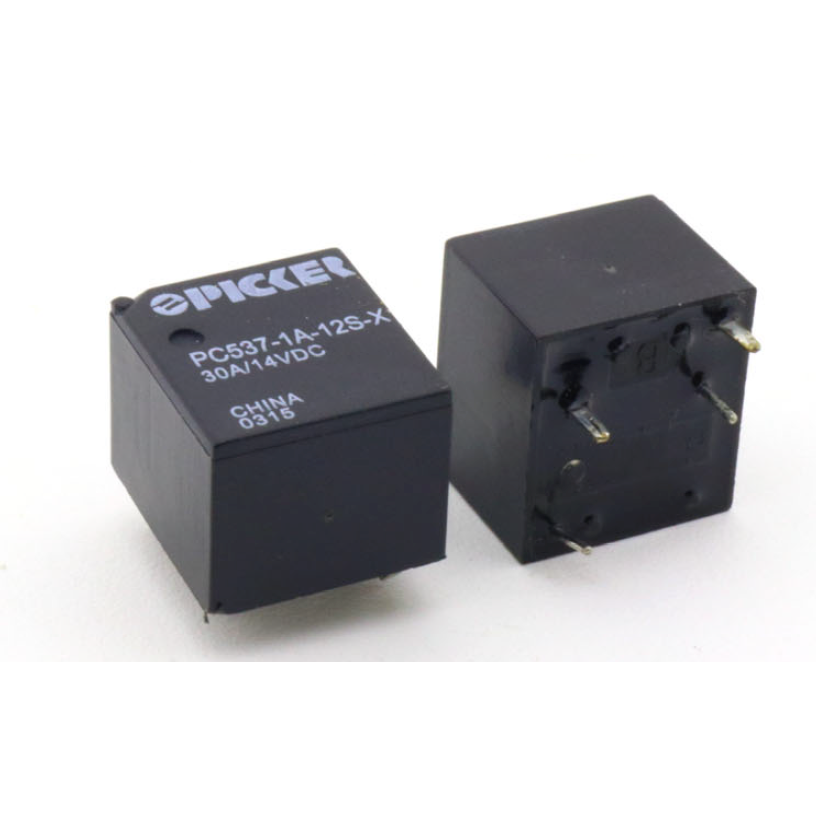

Description: Automotive Relay • Coil Voltage: 12 VDC • Contact Configuration: 1A SPST-NO • Contact Current: 30 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Sealed • Pin Width: Pins 3 & 5 are 0.039 x 0.012 • Coil Power: 570 mW • Contact Material: AgSnO2
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Current | 30 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Enclosure | Sealed |
| Pin Width | Pins 3 & 5 are 0.039 x 0.012 |
| Coil Power | 570 mW |
| Contact Material | AgSnO2 |
| Operate Time | 4 ms max. |
| Release Time | 1.5 ms max |
| Insulation Resistance | 1,000 M? min, at 500 VDC |
| Dielectric Strength | 500 V 50 Hz between Coil and Contacts 500 V 50 Hz between Contacts |
| Shock Resistance | 300 m/s2 6ms |
| Power Consumption | 0.55 W, 0.57 W |
| Vibration Resistance | 10 Hz - 500 Hz, DA 1.27 mm 60 m/s2 |
| Terminal Strength | 10N |
| Solderability | 260oC for 5 seconds |
| Operating Temperature Class F | - 40 to 105°C |
| Storage Temperature | -40°C to 155°C |
| Relative Humidity | 85% at 20°C |
| Series Features |
| PC537 Series Ultraminiature 30 Amp Automotive PCB-Mounted Relay |
