To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Panasonic |
| Manufacturer Product Number | JSM1F-12V-5 |
| Description | Automotive Relay; 1C SPDT; 15A; 12VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

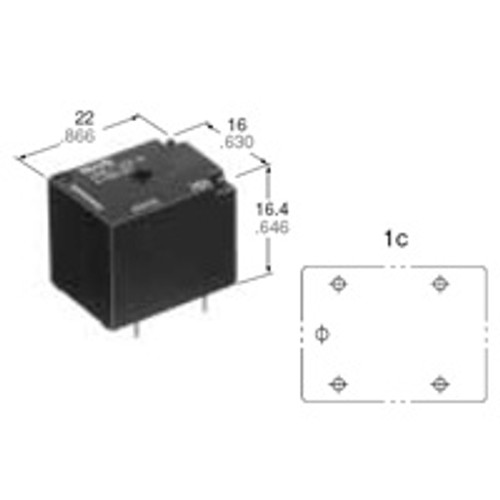

The Panasonic JSM1F-12V-5 is an automotive relay with 1C SPDT contacts, rated 15 A and switching up to 16V DC, driven by a 12VDC coil and drawing 53.3 mA.
It has Through Hole mounting and PC Pin terminals and contacts in Silver Alloy.
| Category | |
| Manufacturer | Panasonic |
| Part Status | Discontinued |
| Contact Configuration | 1C SPDT |
| Coil Voltage | 12VDC |
| Contact Rating (A) | 15 |
| Switching Voltage | 16V DC |
| Maximum Carrying Current | 25A (20°C, 2 min), 15A (20°C, 1 h), 20A (85°C, 2 min), 10A (85°C, 1 h) |
| Termination Style | PC Pin |
| Mounting Type | Through Hole |
| Seal Rating | Flux Resistant |
| Coil Type | Non Latching |
| Contact Type | Standard |
| Contact Material | Silver Alloy |
| Contact Resistance | Max. 100 mΩ |
| Coil Current (mA) | 53.3 |
| Must Operate Voltage | Max. 6.3V DC |
| Must Drop-Out Voltage | Min. 0.9V DC |
| Coil Operating Range | 10 to 16V DC |
| Operate Time (ms) | 10 |
| Release Time (ms) | 10 |
| Operating Temperature | -40...+85 |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Number of Poles | 1 |
Panasonic Automotive Relays or Contactors are designed and intended for use by manufacturers of automobiles and associated automotive subassemblies. Our Automotive Relays/Contactors are complex by nature and proper performance and compatibility can only be assured through rigorous design review, evaluation testing, and specification analysis required by the automotive industry for automotive applications by a properly licensed and certified professional. Performance and safety concerns require that our Automotive Relays / Contactors be sold exclusively to automotive customers for automotive applications.
