To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

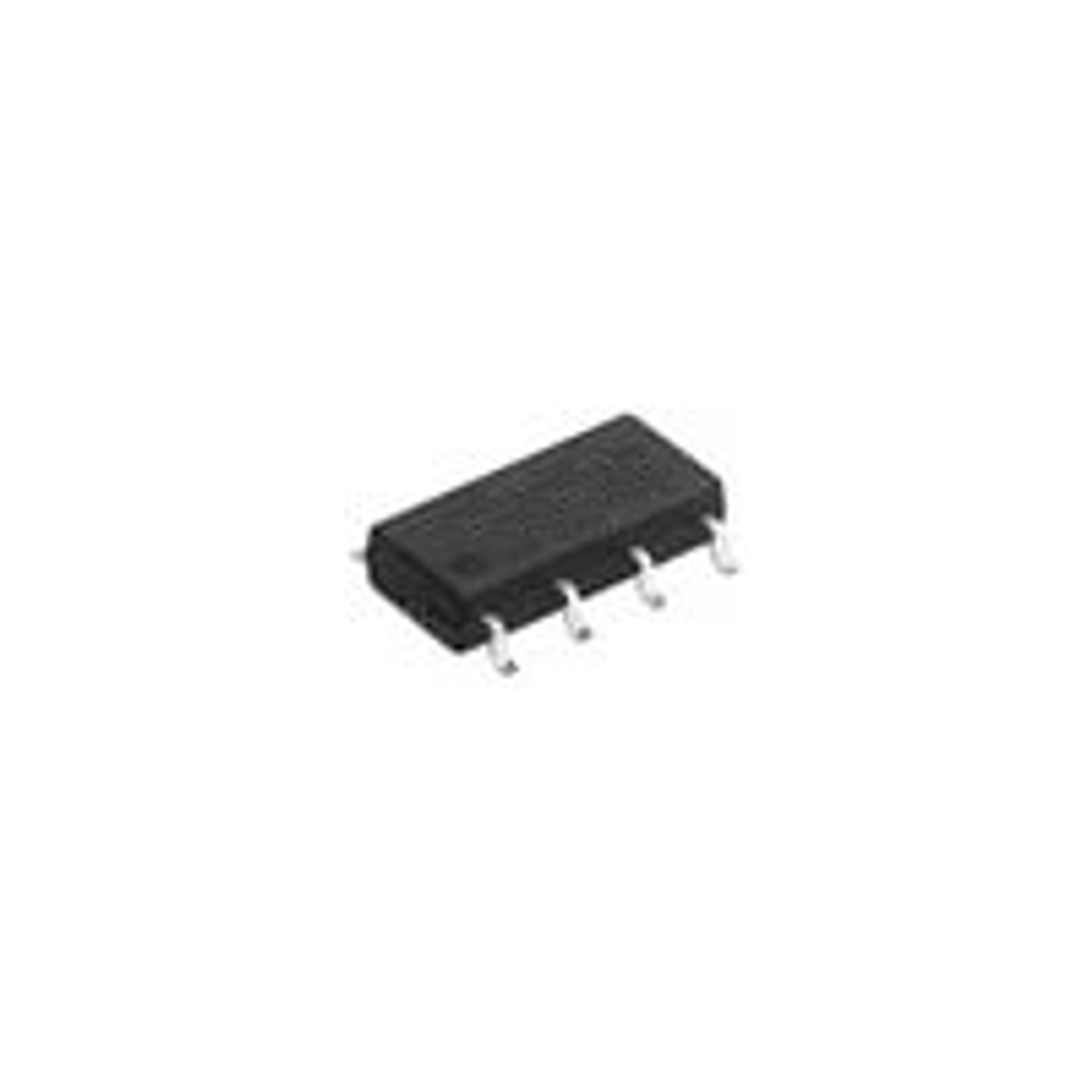

AQW210SX
| Manufacturer |
Panasonic |
| Manufacturer Product Number |
AQW210SX |
Product Description
Description: SSR RELAY SPST-NO 100MA 0-350V
| Product Information | | Resources |
Product Attribute
| Attribute Value
|
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) x 2 |
| Output Type | AC, DC |
| Voltage - Input | 1.14VDC |
| Voltage - Load | 0 V ~ 350 V |
| Load Current | 100 mA |
| On-State Resistance (Max) | 35 Ohms |
| Termination Style | Gull Wing |
| Package / Case | 8-SOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-SOP |
