Product Description
Description: Power Relays • Rated Coil Voltage: 48 VDC • Contact Arrangement: 1A SPST-NO • Contact Current: 16 A • Operating Function : 1 coil latching • Terminal Type: PC Board • Protective Construction: Flux-resistant • Type Classification: Without a test button
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Rated Coil Voltage | 48 VDC |
| Contact Arrangement | 1A SPST-NO |
| Contact Current | 16 A |
| Operating Function | 1 coil latching |
| Terminal Type | PC Board |
| Protective Construction | Flux-resistant |

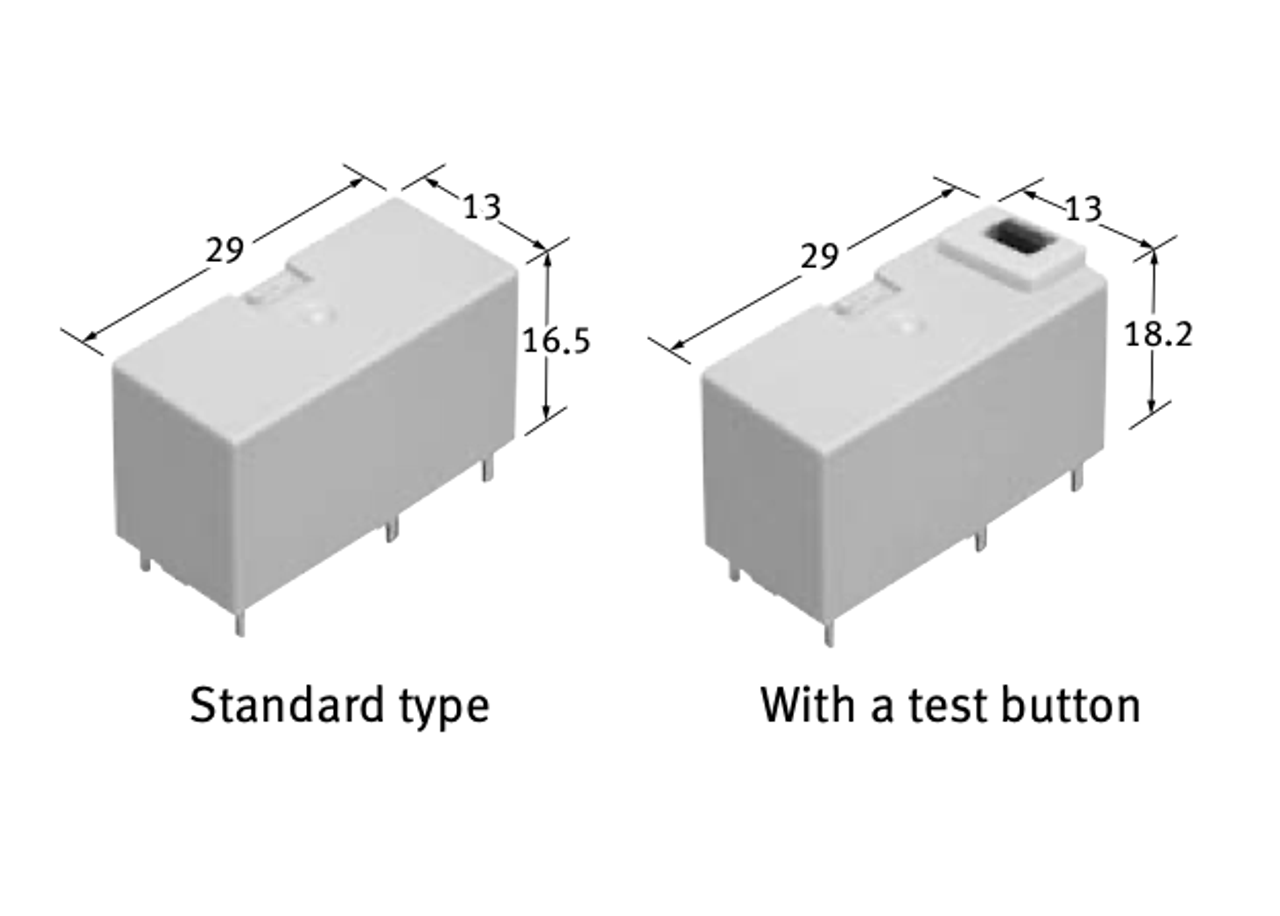

| Type Classification | Without a test button |
| Rated Operating Power | 150 mW |
| Insulation Distance | [Between contact and coil] Min. 8 mm (Clearance and Creepage) |
| Set Voltage | Max. 70% V of rated coil voltage (Initial) |
| Reset Voltage | Max. 70% V of rated coil voltage (Initial) |
| Rated Operating Current [±10%] (at 20°C) | Set coil: 3.1 mA Reset coil: 3.1 mA |
| Resistance [±10%] (at 20°C) | Set coil: 15,360 ? Reset coil: 15,360 ? |
| Max. Allowable Voltage (at 20°C 68°F) | 130% V of rated coil voltage |
| Contact Shape | Single |
| Contact Resistance (Initial) | Max. 100 m? (by voltage drop 6 V DC 1 A) |
| Contact Material | AgSnO2 type |
| Contact Rating (Resistive Load) | 16 A 250 V AC |
| Max. Switching Power (Resistive Load) | 4,000 VA |
| Max. Switching Voltage | 250 V AC |
| Max. Switching Current | 16 A (AC) |
| Min. Switching Load (Reference Value) | 100 mA 5 V DC |
| Insulation Resistance (Initial) | Min. 1,000 M? (at 500 V DC, Measured portion is the same as the case of dielectric strength.) |
| Dielectric Strength (Initial): Between Open Contacts | 1,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric Strength (Initial): Between Contact and Coil | 4,000 Vrms for 1 min (detection current: 10 mA) |
| Surge Withstand Voltage (Initial): Between Contact and Coil | 10,000 V |
| Time (Initial) (at 20°C 68°F) (Initial) | Max. 20 ms at rated coil voltage (without bounce) |
| Reset Time (Initial) (at20°C 68°F) | Max. 20 ms at rated coil voltage (without bounce, without diode) |
| Hock Resistance (Functional) | 200 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs) |
| Hock Resistance (Destructive) | 1,000 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration Resistance (Destructive) | 10 to 55 Hz (at double amplitude of 3 mm) |
| Vibration Resistance (Functional) | 10 to 55 Hz (at double amplitude of 2 mm, detection time: 10 µs) |
| Mechanical Life | Min. 5x106 ope. (switching frequency: at 180 times/min) |
| Conditions | Ambient temperature: -40 to +70°C Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Resistive Load | [switching frequency: 20 times/min] Min. 100x103 ope. 16 A 250 V AC |
| Operate Voltage (@20oC) | - |
| Release Voltage (at20°C) | - |
| Operate Time (Initial) (At 20oC) | - |
| Release Time (Initial) (at 20°C) | - |
| Dielectric Strength (Initial): Between Contact Sets | - |
| Series Features |
| DJ SERIES RELAYS |
| Series Description: Panasonics DJ Series Polarized Power Relays are characterized by high switching capacity in a wide variety of contact arrangements, 1 Form A, 1 Form B, 1 Form C, 1 Form A 1 Form B, 2 Form A, 2 Form B, and 2 Form C. In addition, each one is available in 1-coil latching, 2-coil latching, or single side stable types. The DJ Series Relays are available with a test button option to facilitate circuit checks. |
| Applications: Industrial Machine, Electric Power Devices, Household Appliance Networks, Time Switches |
|
