Product Description

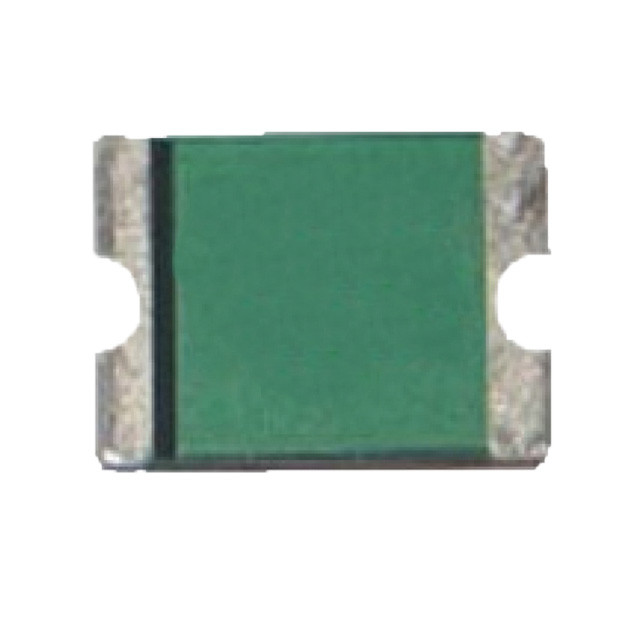

Description: SMD 2920 PTC Fuse - 60V 750mA
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 1.5 A |
| Current - Max | 100 A |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 180 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.045" (1.15mm) |
| Lead Spacing | - |
