Product Description

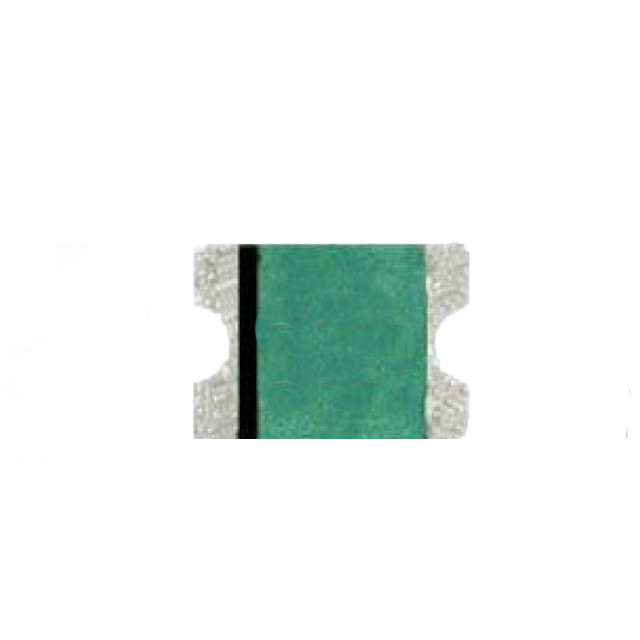

Description: SMD 1812 PTC Fuse - 24V 1.5A
| Product Information | | Resources |
| Manufacturer | OptiFuse | | Product Category | Fuses | | Product Sub Category | Resettable Fuses | | Series | R1812-R Series |
| | |
Product Attribute
| Attribute Value
|
| Type | Polymeric |
| Voltage - Max | 24V |
| Current - Hold (Ih) (Max) | 1.5 A |
| Current - Trip (It) | 3 A |
| Current - Max | 100 A |
| Time to Trip | 500 ms |
| Resistance - Initial (Ri) (Min) | 40110 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.051" (1.30mm) |
| Lead Spacing | - |
