To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Model | R0603LR |
| Manufacturer Product Number | R0603LR-035-R |
| Description | PTC Fuse; 0.35 A; 6 VDC; 0603; SMD |
| Datasheet | Download Datasheet |

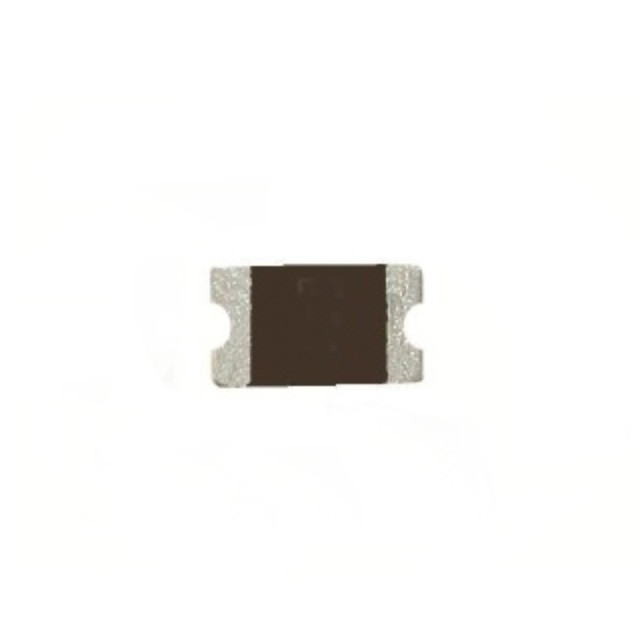

The OptiFuse R0603LR-035-R is a 350 mA hold 0603 surface-mount resettable PTC fuse, rated 6 VDC maximum.
A PTC fuse carries its hold current indefinitely; on an overcurrent it heats, its resistance rises sharply and it limits the current to a trickle, then resets on its own once the fault is removed and power is cycled. This one always trips at 750 mA, in max. 0.10 s at 8.0 A.
It withstands a fault current of up to 100 A at rated voltage. Resistance: minimum 0.200 Ω, 1.000 Ω maximum one hour after tripping. Tripped, it dissipates typically 0.5 W. It operates from -40 to +85 °C.
Construction: outline 1.80 x 1.00 x 0.75 mm (max.); pure tin terminations.
Approvals: UL Recognized.
| Category | |
| Manufacturer | OptiFuse |
