| Manufacturer | OptiFuse |
| Manufacturer Product Number | R0603-012-R |
| Description | PTC Fuse; 0.12 A; 9 VDC; 0603; SMD |
| Datasheet | Download Datasheet |

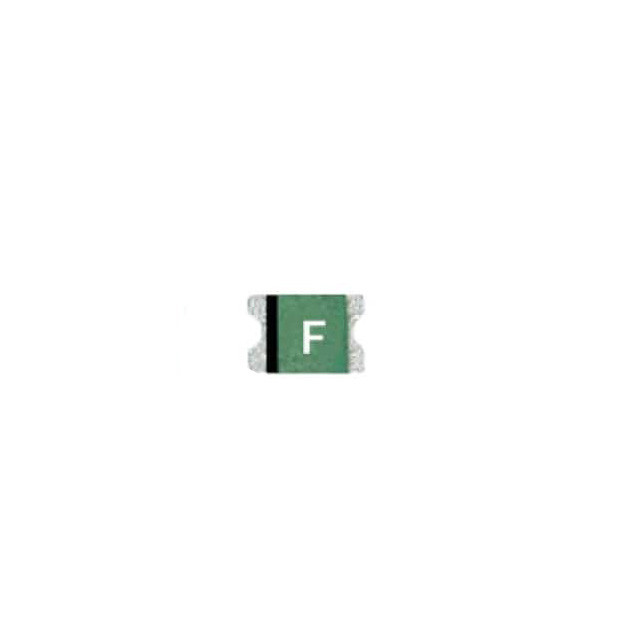

The OptiFuse R0603-012-R is a 120 mA hold 0603 surface-mount resettable PTC fuse, rated 9 VDC maximum.
A PTC fuse carries its hold current indefinitely; on an overcurrent it heats, its resistance rises sharply and it limits the current to a trickle, then resets on its own once the fault is removed and power is cycled. This one always trips at 300 mA, in max. 0.10 s at 0.80 A.
It withstands a fault current of up to 40 A at rated voltage. Resistance: minimum 1.10 Ω, 5.80 Ω maximum one hour after tripping. Tripped, it dissipates typically 0.5 W. It operates from -40 to +85 °C.
Construction: outline 1.80 x 1.00 x 0.75 mm (max.); pure tin terminations.
| Category | |
| Manufacturer | OptiFuse |
| Model | R0603 |
| Hold Current (A) | 0.12 |
| Trip Current (A) | 0.30 |
| Max Voltage | 9 VDC |
| Max Fault Current (A) | 40 |
| Time to Trip | max. 0.10 s at 0.80 A |
| Power Dissipation (W) | 0.5 |
| Min Resistance (Ω) | 1.10 |
| Max Resistance 1 h After Trip (Ω) | 5.80 |
| Mounting Style | Surface Mount |
| Package / Case | 0603 (1608 metric) |
| Size | 1.80 x 1.00 x 0.75 mm (max.) |
| Lead Material | Pure tin terminations |
| Operating Temperature (°C) | -40 to +85 |
