Product Description

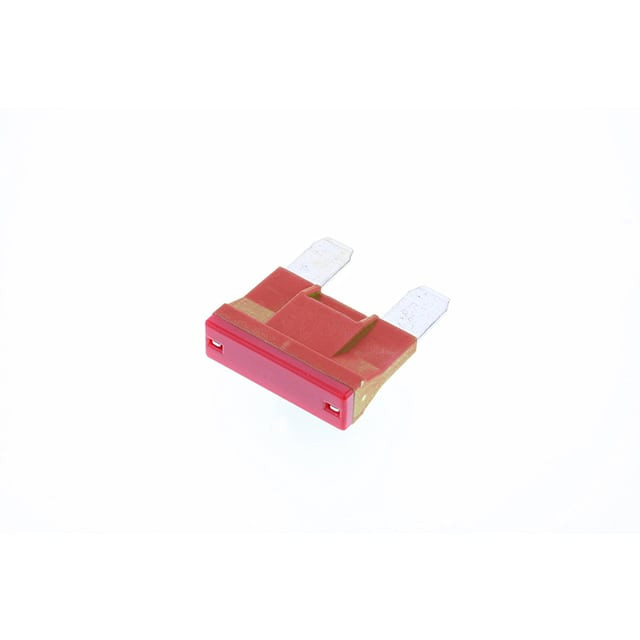

Optifuse ANX80-UL Series Automotive Fuse; 50 A; Requires Holder; 2 Terminal; Red; 80 V; Blade, Max
Automotive Fuse • Mounting Type: Requires Holder • Fuse Type: 2 Terminal • Current Rating (Amps): 50 A • Voltage Rating - DC: 80 V • Package / Case: Blade, Max • Size / Dimension: 1.181" L x 0.346" W x 0.846" H (30.00mm x 8.80mm x 21.50mm) • Color: Red
Product Information
| Manufacturer | Optifuse |
| Product Category | Fuse |
| Product Sub Category | Automotive Fuse |
| Series | ANX80-UL Series |
| Catalog Part Number | ANX80-UL-50A |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | 2 Terminal |
| Current Rating (Amps) | 50 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 80 V |
| Response Time | - |
| Breaking Capacity @ Rated Voltage | 1kA |
| Package / Case | Blade, Max |
| Size / Dimension | 1.181" L x 0.346" W x 0.846" H (30.00mm x 8.80mm x 21.50mm) |
| Body Material | Nylon 66 with 25% Fiber Glass (UL94V-0) |
| Terminal Material | Copper Alloy, Tin Plated |
| Approval Agency | cURus, SAEJ1888, UL |
| Color | Red |
Series Features
ANX80-UL
Series DescriptionBlade - Maxi Style - UL Approved - High Voltage
- 80VDC UL recognized blade fuse, designed for heavy-duty applications. Compatible with vehicle electrical power systems designed for the 42V architecture.
- This fuse is intended for use in higher voltage systems aimed at reducing the current requirements of modern vehicles with increasing power needs. Raising the voltage helps minimize the size of the wiring, contributing to overall vehicle weight reduction and improved efficiency.
- It features industry-standard color coding for easy amperage identification.
