Product Description

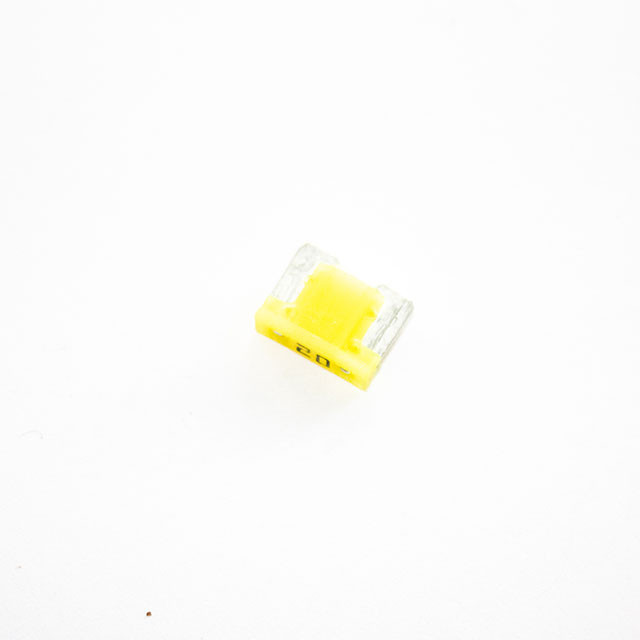

Optifuse ANS-UL Series Automotive Fuse; 20 A; Yellow; Requires Holder; 2 Terminal; 32 V; Blade, Mini (LPro), LED
Automotive Fuse • Mounting Type: Requires Holder • Fuse Type: 2 Terminal • Current Rating (Amps): 20 A • Voltage Rating - DC: 32 V • Package / Case: Blade, Miniature (Low Profile), LED • Size / Dimension: 0.433" L x 0.154" W x 0.344" H (11.00mm x 3.91mm x 8.75mm) • Color: Yellow
Product Information
| Manufacturer | Optifuse |
| Product Category | Fuse |
| Product Sub Category | Automotive Fuse |
| Series | ANS-UL Series |
| Catalog Part Number | ANS-UL-20A |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | 2 Terminal |
| Current Rating (Amps) | 20 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 32 V |
| Response Time | - |
| Breaking Capacity @ Rated Voltage | 1kA |
| Package / Case | Blade, Miniature (Low Profile), LED |
| Size / Dimension | 0.433" L x 0.154" W x 0.344" H (11.00mm x 3.91mm x 8.75mm) |
| Body Material | PA66 |
| Terminal Material | Zinc Alloy |
| Approval Agency | ISO8820, SAE, UL |
| Color | Yellow |
Series Features
ANS-UL
Series DescriptionBlade - Mini Style - Low Profile - UL Approved
- With the same housing height and width as our Mini style blade fuses, this fuse is engineered to save more space and weight by utilizing blade terminals that do not extend the length of the plastic housing body.
- UL recognized, enabling OEM companies to satisfy requirements from UL.
- Designed with industry-standard color coding for easy amperage identification.
