Product Description

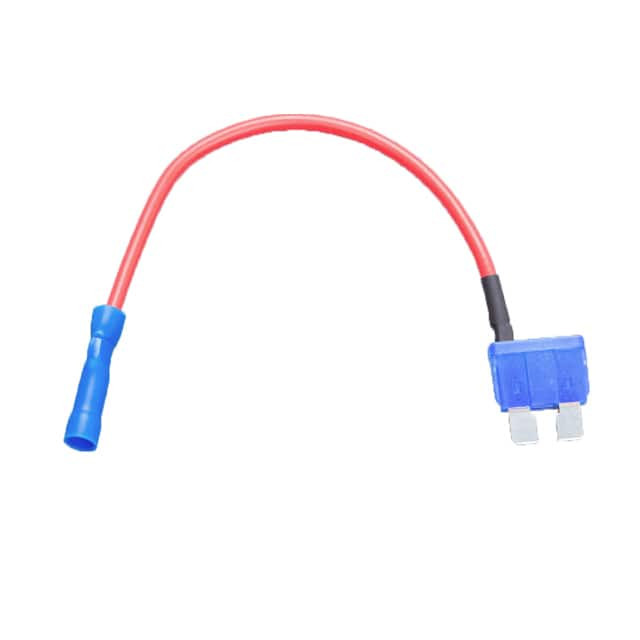

Optifuse ANR-W Series Auto Fuse, Balde, ATO/ATC; Blu Req Hld; 2 Term, Fuse Tap; 15A; 32 V; 16/18 AWG Red Wire
Automotive Fuse • Mounting Type: Requires Holder • Fuse Type: 2 Terminal, Fuse Tap • Current Rating (Amps): 15 A • Voltage Rating - DC: 32 V • Package / Case: Blade, ATO/ATC • Size / Dimension: 0.760" L x 0.197" W x 0.494" H (19.30mm x 5.00mm x 12.54mm) • Color: Blue • Wire Type:
Product Information
| Manufacturer | Optifuse |
| Product Category | Fuse |
| Product Sub Category | Automotive Fuse |
| Series | ANR-W Series |
| Catalog Part Number | ANR-W-15A-18R |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | 2 Terminal, Fuse Tap |
| Current Rating (Amps) | 15 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 32 V |
| Response Time | - |
| Breaking Capacity @ Rated Voltage | 1kA |
| Package / Case | Blade, ATO/ATC |
| Size / Dimension | 0.760" L x 0.197" W x 0.494" H (19.30mm x 5.00mm x 12.54mm) |
| Body Material | PA66 |
| Terminal Material | Zinc Alloy |
| Approval Agency | ISO8820, SAE |
| Color | Blue |
| Wire Type | 16 or 18 AWG Red Wire |
Series Features
ANR-W
Series DescriptionFuse Tap - Regular (ATO/ATC Style)
- Fuse taps let you add an additional device to your vehicle’s electrical system using one fuse to protect two circuits, so long as the current for both circuits (existing and new) matches the fuse tap’s rating.
- It comes in three amperages (10A, 15A, and 20A) and the output is determined by the wire gauge (10A for 16AWG and 5A for 18WG) regardless of the fuse amperage.
- No cutting or splicing is necessary since it comes with built-in butt splice connectors for easy wiring.
