Product Description

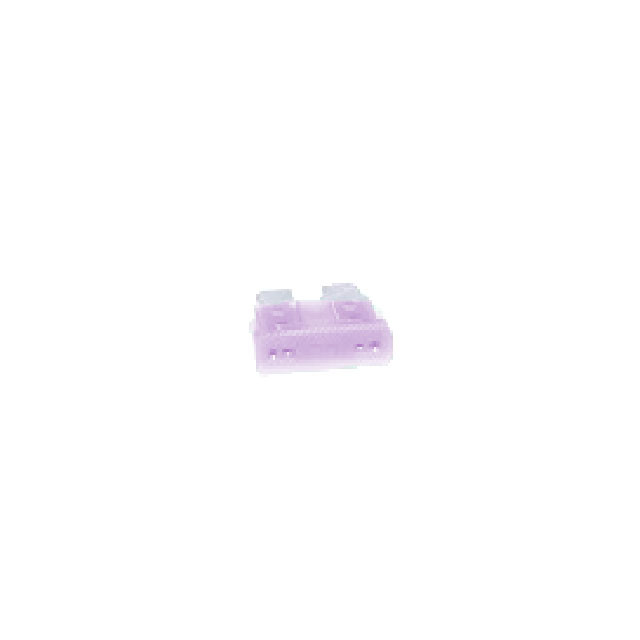

Optifuse ANR-UL Series Automotive Fuse; 3 A; Requires Holder; 2 Terminal; Violet; 32 V; Blade, ATO/ATC
Automotive Fuse • Mounting Type: Requires Holder • Fuse Type: 2 Terminal • Current Rating (Amps): 3 A • Voltage Rating - DC: 32 V • Package / Case: Blade, ATO/ATC • Size / Dimension: 0.768" L x 0.217" W x 0.547" H (19.50mm x 5.50mm x 13.90mm) • Color: Violet
Product Information
| Manufacturer | Optifuse |
| Product Category | Fuse |
| Product Sub Category | Automotive Fuse |
| Series | ANR-UL Series |
| Catalog Part Number | ANR-UL-3A |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | 2 Terminal |
| Current Rating (Amps) | 3 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 32 V |
| Response Time | - |
| Breaking Capacity @ Rated Voltage | 1kA |
| Package / Case | Blade, ATO/ATC |
| Size / Dimension | 0.768" L x 0.217" W x 0.547" H (19.50mm x 5.50mm x 13.90mm) |
| Body Material | Nylon PA66 |
| Terminal Material | Zinc Alloy, Tin Plated |
| Approval Agency | cURus, ISO8820-3, UL |
| Color | Violet |
Series Features
ANR-UL
Series DescriptionBlade - Regular (ATO/ATC Style) - UL Approved
- Standard blade fuse style that is interchangeable with ATO® and ATC®, provided the amperage rating is the same.
- UL recognized, enabling OEM companies to satisfy requirements from UL.
- Designed with industry-standard color coding for easy amperage identification.
