Product Description

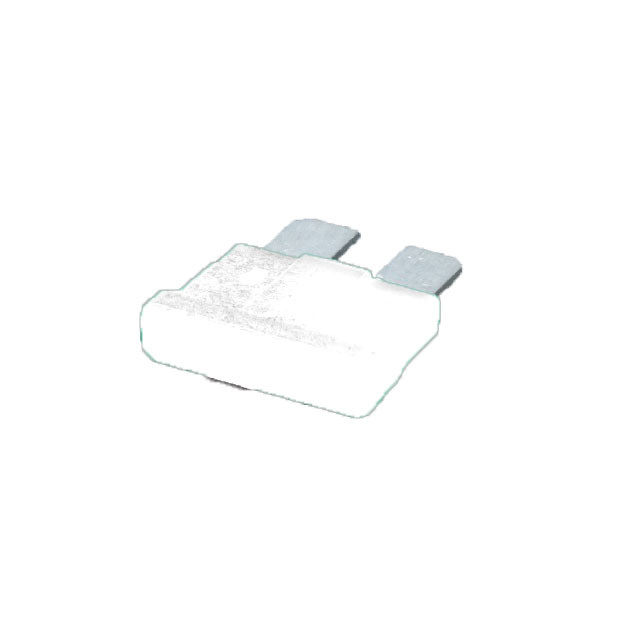

Optifuse ANR-I Series Automotive Fuse; 25 A; Clear; Requires Holder; 2 Terminal; 32 V; Blade, ATO/ATC, LED
Automotive Fuse • Mounting Type: Requires Holder • Fuse Type: 2 Terminal • Current Rating (Amps): 25 A • Voltage Rating - DC: 32 V • Package / Case: Blade, ATO/ATC, LED • Size / Dimension: 0.760" L x 0.197" W x 0.494" H (19.30mm x 5.00mm x 12.54mm) • Color: Clear
Product Information
| Manufacturer | Optifuse |
| Product Category | Fuse |
| Product Sub Category | Automotive Fuse |
| Series | ANR-I Series |
| Catalog Part Number | ANR-I-25A |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Requires Holder |
| Fuse Type | 2 Terminal |
| Current Rating (Amps) | 25 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 32 V |
| Response Time | - |
| Breaking Capacity @ Rated Voltage | 1kA |
| Package / Case | Blade, ATO/ATC, LED |
| Size / Dimension | 0.760" L x 0.197" W x 0.494" H (19.30mm x 5.00mm x 12.54mm) |
| Body Material | PA 66 |
| Terminal Material | Zinc Alloy |
| Approval Agency | ISO8820, SAE |
| Color | Clear |
Series Features
ANR-I-10AANR-I
Series DescriptionBlade - Regular (ATO/ATC Style) - LED
- Standard blade fuse style that is interchangeable with ATO® and ATC®, provided the amperage rating is the same.
- Comes with LED indication that illuminates when the fuse has opened, conveniently shortening response times by pinpointing which device needs replacement.
- Designed with industry-standard color coding for easy amperage identification.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
