Product Description

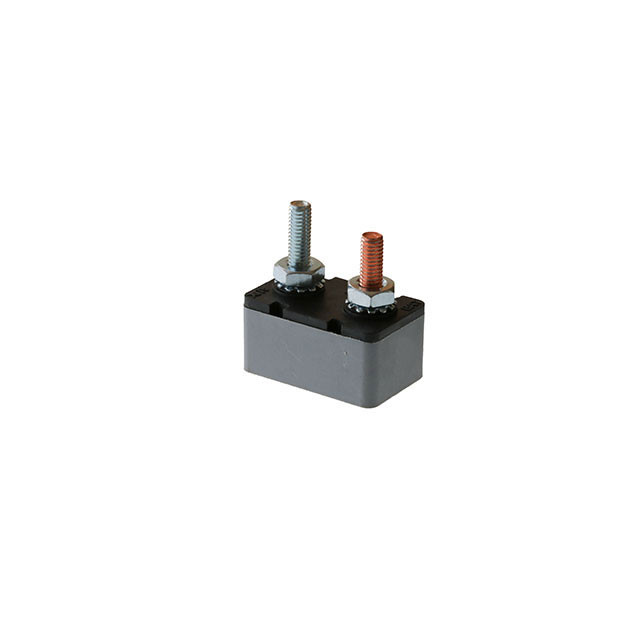

Optifuse ACBP-N Series Auto CB - Auto Reset; Gray; 10A; 32VDC; Shortstop; No Brkt; Chassis Mount; #10-32 Stud
Circuit Breaker • Current: 10A • Voltage Rating: 32VDC • Type: Color Coded • Reset Type : Type I - Auto Reset • Terminals: Battery – Copper Plate (0.58”) Auxiliary – Zinc Plate (0.66”) • Mounting Type: Chassis Mount • Terminals Configuration: #10-32 Stud • Color: Gray
Specifications
| Product Attribute |
Attribute Value |
| Current | 10A |
| Voltage Rating | 32VDC |
| Type | Color Coded |
| Reset Type | Type I - Auto Reset |
| Limited Short Circuit Current | 1000A (UL1077) |
| Insulation Resistance | DC 500V 100M ohm 5 sec |
| Dielectric Strength | AC 1500V 1 minute |
| Body | Thermoplastic (UL94V-0) |
| Terminals | Battery – Copper Plate (0.58”) Auxiliary – Zinc Plate (0.66”) |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C ~ 60°C |
| Terminals Configuration | #10-32 Stud |
| Color | Gray |
