Product Description

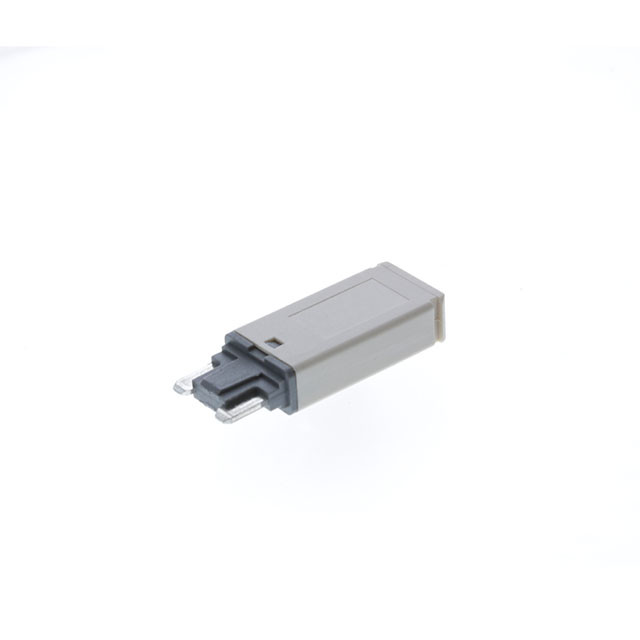

Optifuse ACBP4-PS Series Auto CB - Auto Reset - Low Pro; 25A; 58VDC; White; Mini Blade; Tin plated Brass Alloy Terminals
Circuit Breaker • Current: 25A • Voltage Rating: 58VDC • Type: Mini Blade – Low Profile • Reset Type : Type I - Auto Reset • Terminals: Tin plated Brass Alloy • Color: White
Product Information
| Manufacturer | Optifuse |
| Product Category | Circuit Breaker |
| Product Sub Category | Automotive Circuit Breakers |
| Series | ACBP4-PS Series |
| Catalog Part Number | ACBP4-PS-25A |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Current | 25A |
| Voltage Rating | 58VDC |
| Type | Mini Blade – Low Profile |
| Reset Type | Type I - Auto Reset |
| Materials | Thermoplastic – (UL Rated 94-V-0) |
| Terminals | Tin plated Brass Alloy |
| Compliances | SAE J553 Type I, IEC 60934 |
| Operating Temperature | -40o C ~ 85o C |
| Color | White |
Series Features
ACBP4-PS
Series DescriptionBlade - Mini Low Profile - Auto Reset
- Recommended for most commercial applications where downtime can be costly and resettability is needed.
- Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Mini – Low Profile style blade fuse, such as the OptiFuse APS and ANS series.
- Designed with a thermoplastic body that is color-coded to match the corresponding fuse — for example, a red fuse (10A) can be conveniently replaced with a red circuit breaker (10A).
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
