To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | ACBP4-PS-10A |
| Description | Automotive Circuit Breaker; 10 A; 14 VDC; Type I - Auto Reset |
| Datasheet | Download Datasheet |

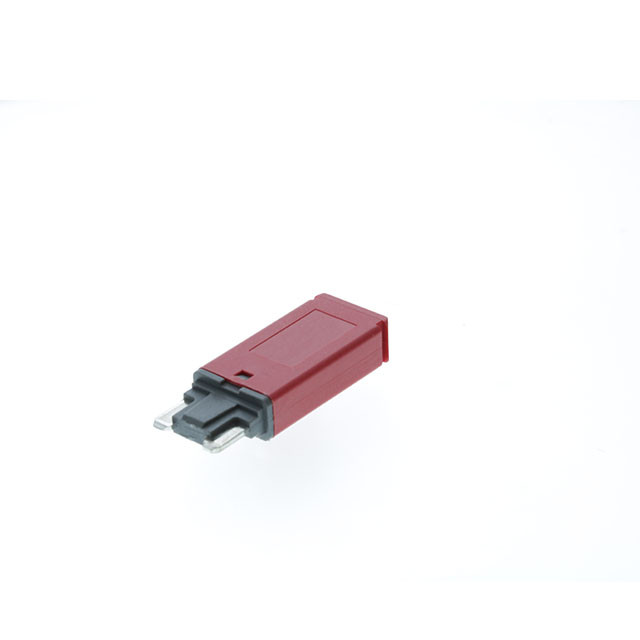

The OptiFuse ACBP4-PS-10A is a 10 A low profile mini blade automotive circuit breaker with automatic reset (SAE J553 Type I), rated 14 VDC.
It plugs into a low profile mini blade fuse holder.
Its body is red thermoplastic (UL rated 94V-0).
It interrupts 150 A @ 12 VDC. Trip times at 25 °C, as a share of the rating: 100%: hold, no trip; 135%: max. 30 min; 200%: 5-35 s; 300%: 1-9 s. It operates from -40 to +85 °C.
Tested to SAE J553 Type I.
| Category | |
| Manufacturer | OptiFuse |
| Model | ACBP4-PS |
| Current Rating (A) | 10 |
| Voltage Rating - DC | 14 VDC |
| Reset Type | Type I - Auto Reset |
| Breaker Style | Low Profile Mini Blade |
| Mounting Type | Plugs into a low profile mini blade fuse holder |
| Terminal Type | Blade |
| Terminal Material | Tin plated Copper Alloy |
| Interrupting Rating | 150 A @ 12 VDC |
| Trip Characteristics | 100%: hold, no trip; 135%: max. 30 min; 200%: 5-35 s; 300%: 1-9 s |
| Operating Temperature (°C) | -40 to +85 |
| Standards | SAE J553 Type I |
| Body Color | Red |
| Body Material | Thermoplastic (UL Rated 94V-0) |
| Number of Poles | 1 |
