Product Description

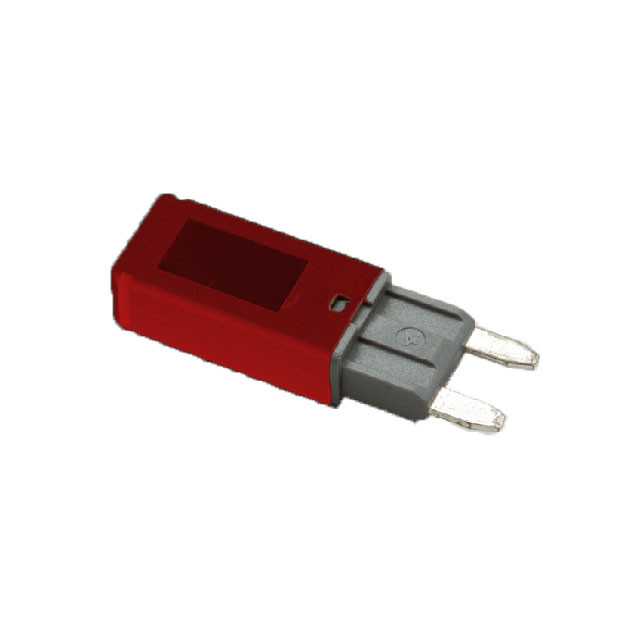

Optifuse ACBP4-PML Series Automotive CB - Auto Reset; 10A; 14VDC; Red; Mini Blade; Tin plated Brass Alloy Terminals
Circuit Breaker • Current: 10A • Voltage Rating: 14VDC • Type: Standard Mini Blade - Extended Body • Reset Type : Type I - Auto Reset • Terminals: Tin plated Brass Alloy • Color: Red
Product Information
| Manufacturer | Optifuse |
| Product Category | Circuit Breaker |
| Product Sub Category | Automotive Circuit Breakers |
| Series | ACBP4-PML Series |
| Catalog Part Number | ACBP4-PML-10A |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Current | 10A |
| Voltage Rating | 14VDC |
| Type | Standard Mini Blade - Extended Body |
| Reset Type | Type I - Auto Reset |
| Materials | Thermoplastic – (UL Rated 94-V-0) |
| Terminals | Tin plated Brass Alloy |
| Compliances | Conforms to American National Standard SAE J553 Type I |
| Operating Temperature | -40o C ~ 85o C |
| Color | Red |
Series Features
ACBP4-PML
Series DescriptionBlade - Mini - Auto Reset
- Recommended for most commercial applications where downtime can be costly and resettability is needed.
- Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Mini style blade fuse, such as the OptiFuse APM and ANM series.
- Designed with a thermoplastic body that is color-coded to match the corresponding fuse — for example, a red fuse (10A) can be conveniently replaced with a red circuit breaker (10A).
