To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | ACBP-24-V-35A |
| Description | Automotive Circuit Breaker; 35 A; 24 VDC; Type I - Auto Reset |
| Datasheet | Download Datasheet |

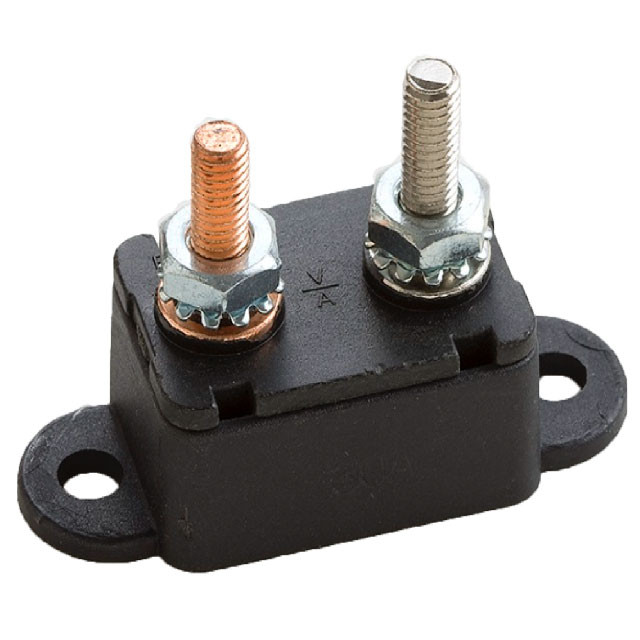

The OptiFuse ACBP-24-V-35A is a 35 A 10-32 stud (Shortstop style) automotive circuit breaker with automatic reset (SAE J553 Type I), rated 24 VDC.
It mounts by a vertical bracket (ears in line with the studs); its terminals are #10-32 studs (battery copper plated, auxiliary zinc plated).
Its body is PBT.
Trip times at 25 °C, as a share of the rating: 100% ± 1.5%: min. > 30 Min; 135% ± 1.5%: max. < 30 Min; 200% ± 1.5%: max. < 1 Min.
It is sealed to IP60.
Tested to SAE J553.
| Category | |
| Manufacturer | OptiFuse |
| Model | ACBP-24-V |
| Part Status | Discontinued |
