Product Description

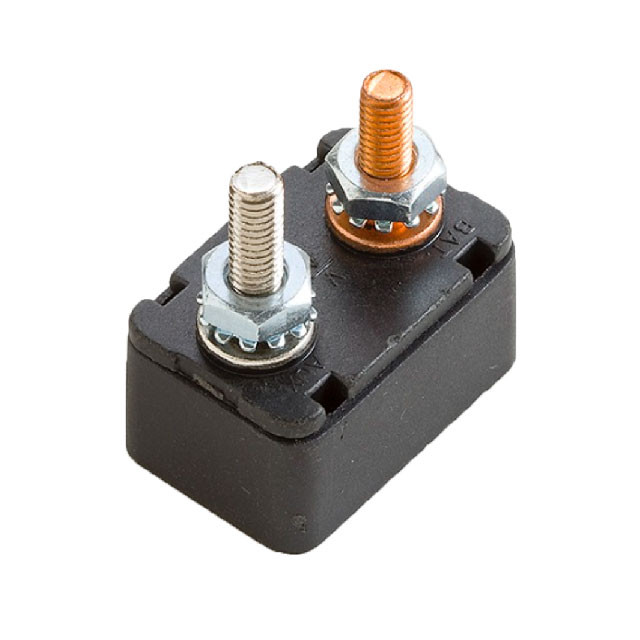

Optifuse ACBP-N Series Automotive CB - Auto Reset; 25A; 24VDC; Shortstop; #10-32 Stud Terminals
Circuit Breaker • Current: 25A • Voltage Rating: 24VDC • Type: Plastic Without Bracket • Reset Type : Type I - Auto Reset • Terminals: Battery – Copper Plate (0.58”), Auxiliary – Zinc Plate (0.66”) • Terminals Configuration: #10-32 Stud
Product Information
| Manufacturer | Optifuse |
| Product Category | Circuit Breaker |
| Product Sub Category | Automotive Circuit Breakers |
| Series | ACBP-N Series |
| Catalog Part Number | ACBP-24-N-25A |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Current | 25A |
| Voltage Rating | 24VDC |
| Type | Plastic Without Bracket |
| Reset Type | Type I - Auto Reset |
| IP Rating | 63 |
| Terminals | Battery – Copper Plate (0.58”), Auxiliary – Zinc Plate (0.66”) |
| Compliances | Conforms to American National Standard SAE J553 |
| Body | PBT |
| Operating Temperature | -10o F ~ 150o F |
| Storage Temperature | -20o F ~ 200o F |
| Terminals Configuration | #10-32 Stud |
Series Features
ACBP-N Gray Series
Series DescriptionShortstop - Auto Reset - No Bracket
- Time-saving and cost-effective solution to protect auxiliary circuits on RVs, marine craft, emergency vehicles and heavy-duty trucks.
- Ignition rated and SAE J1171 compliant for use in marine engine compartments, this series is easily mounted alongside similar non-bracket breakers in our CBB mounting brackets.
- Conforms to the SAE J553 standard for circuit breaker performance and is designed with a plastic housing that is IP63 rated for dirt, dust, and splash resistance, with optional waterproofing via an add-on sealing cover for stud protection.
