To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | TMS-E-800mA |
| Description | Micro Fuse; 0.8 A; Time-Delay; Round; Short Lead; 250 VAC |
| Datasheet | Download Datasheet |

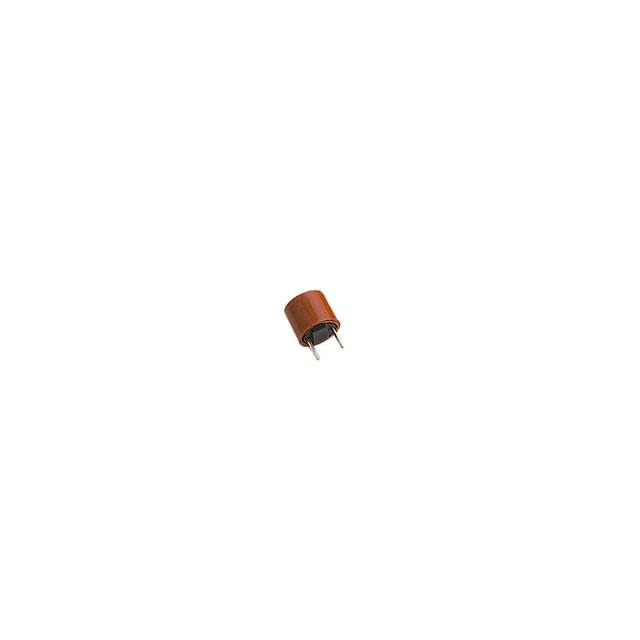

The OptiFuse TMS-E-800MA is a 800 mA time-delay (slow-blow) round micro fuse with short radial leads, rated 250 VAC.
A time-delay element rides through the brief inrush of motors, transformers and capacitive power supplies, yet still opens on a sustained overload. It mounts through-hole on a 5.08 mm (0.20 in) lead spacing, with 4.3 mm (0.17 in) leads.
Breaking capacity: 35 A or 10 x In (whichever is greater). Opening times, as a percentage of the rated current: 210%: max. 2 min; 275%: 400 ms to 10 s; 400%: 150 ms to 3 s; 1000%: 20 ms to 150 ms. Typical melting I²t 2.987 A²s. It operates from -55 to +125 °C.
Construction: body 8.5 mm diameter; thermoplastic, UL 94V-0 body; leads tin-lead plated alloy.
Approvals: VDE, SEMKO, BSI, CCC, KC.
| Category | |
| Manufacturer | OptiFuse |
| Model | TMS-E |
| Current Rating (A) | 0.8 |
| Size | 8.5 mm dia. |
| Speed | Time-Delay (Slow-Blow) |
| Voltage Rating | 250 VAC |
| Breaking Capacity | 35 A or 10 x In (whichever is greater) |
| Body Material | Thermoplastic, UL 94V-0 |
| Mounting Style | Radial Lead (Through-Hole) |
| Body Shape | Round |
| Lead Length | 4.3 mm (0.17 in) |
| Lead Spacing | 5.08 mm (0.20 in) |
| Packaging | Bulk |
| Approvals | VDE, SEMKO, BSI, CCC, KC |
| Opening Time | 210%: max. 2 min; 275%: 400 ms to 10 s; 400%: 150 ms to 3 s; 1000%: 20 ms to 150 ms |
| Melting I²t (A²s) | 2.987 |
| Operating Temperature (°C) | -55 to +125 |
| Lead Material | Tin-lead plated alloy |
