To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | TCD-1.6A |
| Description | Ceramic Fuse; 1.6 A; Slow-Blow; 5x20mm; IEC 60127; 250 VAC |
| Datasheet | Download Datasheet |

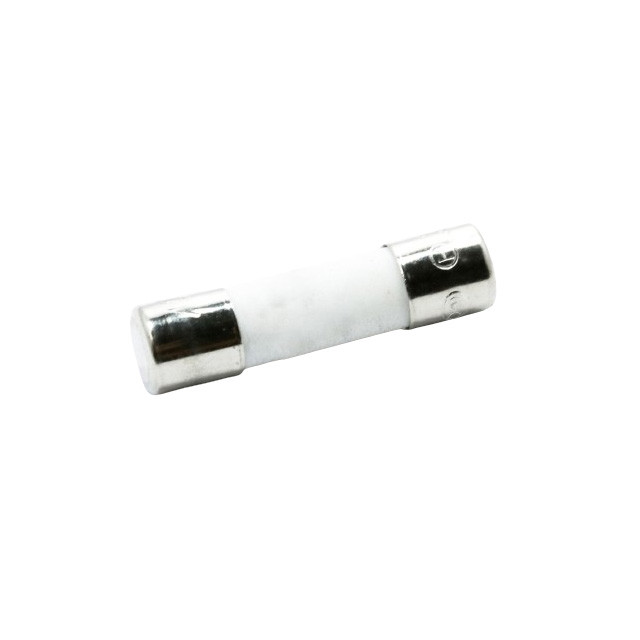

The OptiFuse TCD-1.6A is a 1.6 A time-delay (slow-blow) ceramic cartridge fuse in the 5 x 20 mm size, rated 250 VAC.
A time-delay element rides through the brief inrush of motors, transformers and capacitive power supplies, yet still opens on a sustained overload. It fits standard fuse clips and holders of the same size.
Breaking capacity: 1500 A @ 250 VAC. Opening times, as a percentage of the rated current: 210%: max. 30 min; 275%: 750ms to 80 s; 400%: 95ms to 5 s; 1000%: 10ms to 150ms. Typical cold resistance 0.1060 Ω, melting I²t 4.238 A²s. It operates from -55 to +125 °C.
Construction: ceramic body.
It is cURus Recognized (UL file E197390). Standards: IEC 60127.
| Category | |
| Manufacturer | OptiFuse |
| Model | TCD |
| Current Rating (A) | 1.6 |
| Size | 5 x 20 mm |
| Speed | Time-Delay (Slow-Blow) |
| Voltage Rating | 250 VAC |
| Breaking Capacity | 1500 A @ 250 VAC |
| Body Material | Ceramic |
| Mounting Style | Cartridge |
| Approvals | cURus Recognized |
| UL File Number | E197390 |
| Standards | IEC 60127 |
| Opening Time | 210%: max. 30 min; 275%: 750ms to 80 s; 400%: 95ms to 5 s; 1000%: 10ms to 150ms |
| Melting I²t (A²s) | 4.238 |
| Cold Resistance (Ω) | 0.1060 |
| Operating Temperature (°C) | -55 to +125 |
