To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | T6J-400A |
| Description | Industrial Fuse; 400 A; Class J; Time-Delay; 181mm L; 600 VAC / 500 VDC; Blade |
| Datasheet | Download Datasheet |

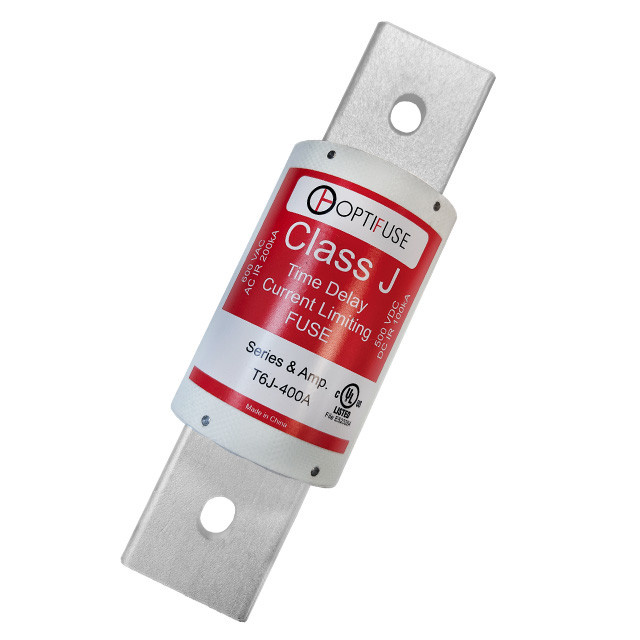

The OptiFuse T6J-400A is a 400 A time-delay (slow-blow) UL Class J fuse, rated 600 VAC / 500 VDC.
Class J is a current-limiting 600 V branch-circuit fuse, physically smaller than an RK5 of the same rating and rejecting it in the holder. A time-delay element rides through the brief inrush of motors, transformers and capacitive power supplies, yet still opens on a sustained overload.
Interrupting rating: 200 kA @ 600 VAC; 100 kA @ 500 VDC.
Construction: 181 mm overall length; knife blade with mounting hole.
It is cULus Listed (UL file E523284). Standards: UL 248-8, CSA C22.2 No. 248.8.
| Category | |
| Manufacturer | OptiFuse |
| Model | T6J |
| Current Rating (A) | 400 |
| Size | 181 mm overall length |
| Speed | Time-Delay (Slow-Blow) |
| UL Class | Class J |
| Voltage Rating | 600 VAC / 500 VDC |
| Breaking Capacity | 200 kA @ 600 VAC; 100 kA @ 500 VDC |
| Terminal Type | Knife blade with mounting hole |
| Approvals | cULus Listed |
| UL File Number | E523284 |
| Standards | UL 248-8, CSA C22.2 No. 248.8 |
