To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | SCA-800mA |
| Description | Ceramic Fuse; 0.8 A; Super Fast; 6.3x32mm; UL; 1000 VAC; 1000 VDC |
| Datasheet | Download Datasheet |

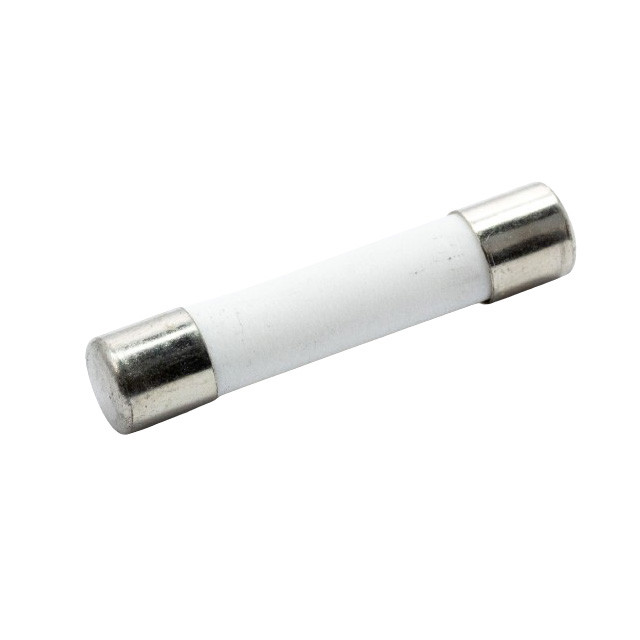

The OptiFuse SCA-800MA is a 800 mA super fast-acting ceramic cartridge fuse in the 6.3 x 32 mm (1/4 x 1-1/4 in) size, rated 1000 VAC / 1000 VDC.
A super fast-acting fuse clears a fault before it can damage semiconductors and other sensitive components. It fits standard fuse clips and holders of the same size.
Breaking capacity: 50kA @ 1000 VAC/DC (In Practice); 10kA @ 1000 VAC; 10kA @ 600 VAC; 10kA @ 1000 VDC. Opening times, as a percentage of the rated current: 400%: max. 60ms; 1000%: max. 6ms.
Construction: ceramic body.
It is cURus Recognized (UL file E197390). Standards: UL 248-14, CSA C22.2 No. 248.14.
| Category | |
| Manufacturer | OptiFuse |
| Model | SCA |
| Current Rating (A) | 0.8 |
| Size | 6.3 x 32 mm (1/4 x 1-1/4 in) |
| Speed | Super Fast-Acting |
| Voltage Rating | 1000 VAC; 1000 VDC |
| Breaking Capacity | 50kA @ 1000 VAC/DC (In Practice); 10kA @ 1000 VAC; 10kA @ 600 VAC; 10kA @ 1000 VDC |
| Body Material | Ceramic |
| Mounting Style | Cartridge |
| Approvals | cURus Recognized |
| UL File Number | E197390 |
| Standards | UL 248-14, CSA C22.2 No. 248.14 |
| Opening Time | 400%: max. 60ms; 1000%: max. 6ms |
