To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | SCA-6A |
| Description | Ceramic Fuse; 6 A; Super Fast; 6.3x32mm; UL 248-14; 600 VAC |
| Datasheet | Download Datasheet |

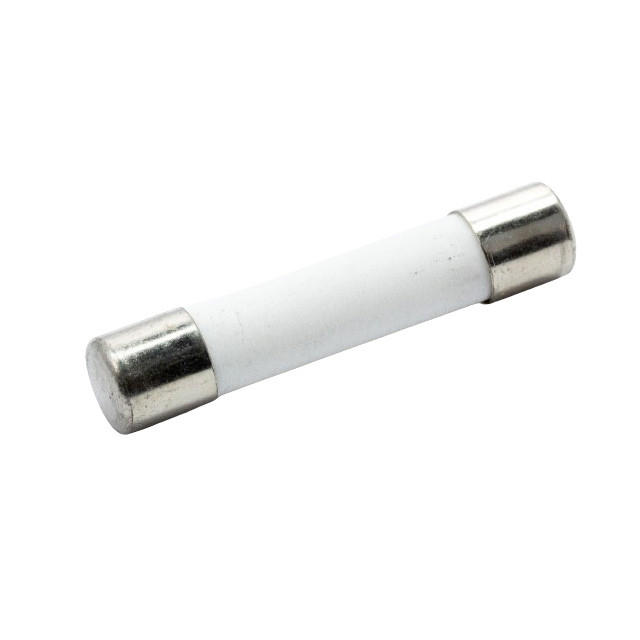

The OptiFuse SCA-6A is a 6 A super fast-acting ceramic cartridge fuse in the 6.3 x 32 mm (1/4 x 1-1/4 in) size, rated 600 VAC.
A super fast-acting fuse clears a fault before it can damage semiconductors and other sensitive components. It fits standard fuse clips and holders of the same size.
Breaking capacity: 10kA @ 600 VAC. Opening times, as a percentage of the rated current: 210%: max. 30 min; 275%: 5ms to 1 s; 400%: max. 60ms; 1000%: max. 6ms.
Construction: ceramic body.
UL file E197390. Standards: UL 248-14, CSA C22.2 No. 248.14.
| Category | |
| Manufacturer | OptiFuse |
| Model | SCA |
| Current Rating (A) | 6 |
| Size | 6.3 x 32 mm (1/4 x 1-1/4 in) |
| Speed | Super Fast-Acting |
| Voltage Rating | 600 VAC |
| Breaking Capacity | 10kA @ 600 VAC |
| Body Material | Ceramic |
| Mounting Style | Cartridge |
| UL File Number | E197390 |
| Standards | UL 248-14, CSA C22.2 No. 248.14 |
| Opening Time | 210%: max. 30 min; 275%: 5ms to 1 s; 400%: max. 60ms; 1000%: max. 6ms |
