To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
Bulk Pricing
Qty.Price
1
10
25
50
100
250
$2.05
$1.82
$1.64
$1.49
$1.43
$1.31
Product Description

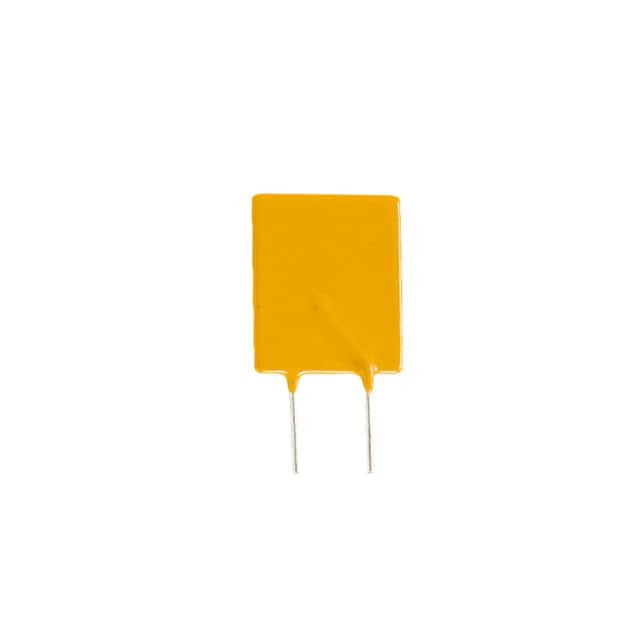

Description: RESETTABLE FUSE-30VDC - RADIAL LEAD
| Product Information | | Resources |
| Manufacturer | OptiFuse | | Product Category | Fuses | | Product Sub Category | Resettable Fuses | | Series | RS30 Series |
| | |
Product Attribute
| Attribute Value
|
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 8 A |
| Current - Trip (It) | 16 A |
| Current - Max | 100 A |
| Time to Trip | 18.8 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 20 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.850" L x 0.118" W (21.60mm x 3.00mm) |
| Height - Seated (Max) | 1.150" (29.20mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.402" (10.20mm) |
