To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
Bulk Pricing
Qty.Price
1
10
25
50
100
250
$0.87
$0.77
$0.70
$0.63
$0.60
$0.56
Product Description

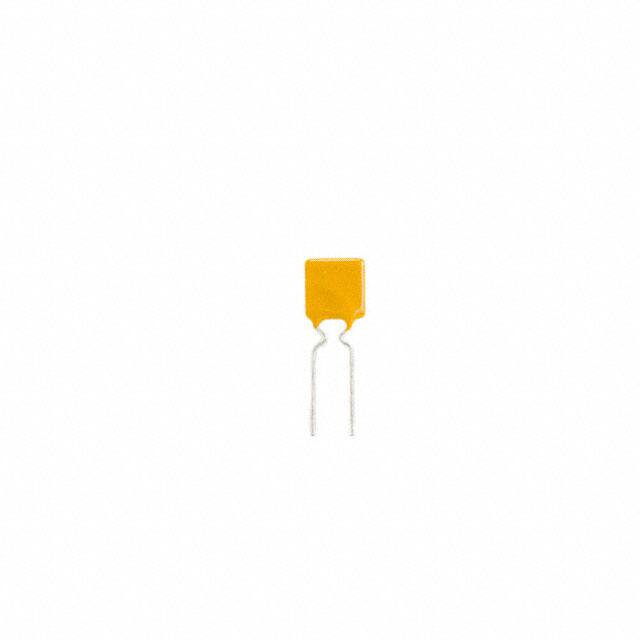

Description: RESETTABLE FUSE-30VDC - RADIAL LEAD
| Product Information | | Resources |
| Manufacturer | OptiFuse | | Product Category | Fuses | | Product Sub Category | Resettable Fuses | | Series | RS30 Series |
| | |
Product Attribute
| Attribute Value
|
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Current - Max | 100 A |
| Time to Trip | 6.6 s |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 170 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.291" L x 0.118" W (7.40mm x 3.00mm) |
| Height - Seated (Max) | 0.559" (14.20mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
