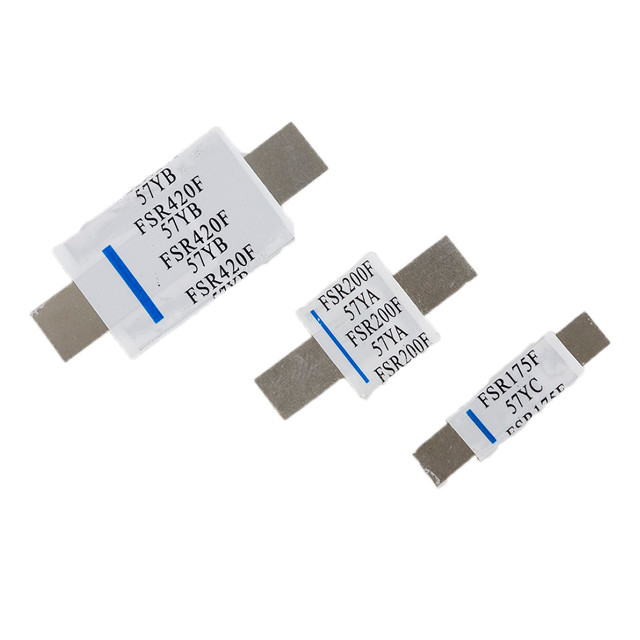

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | RASR-200 |
| Description | PTC Fuse; 2.00 A; 30 VDC; Battery Strap |
| Datasheet | Download Datasheet |
The OptiFuse RASR-200 is a 2 A hold battery-strap resettable PTC fuse, rated 30 VDC maximum.
A PTC fuse carries its hold current indefinitely; on an overcurrent it heats, its resistance rises sharply and it limits the current to a trickle, then resets on its own once the fault is removed and power is cycled. This one always trips at 4.4 A, in max. 4.0 s at 5 x IH.
It withstands a fault current of up to 100 A at rated voltage. Resistance: minimum 0.030 Ω, maximum 0.060 Ω, 0.100 Ω maximum one hour after tripping. Tripped, it dissipates typically 1.9 W. It operates from -40 to +85 °C.
Construction: outline 23.4 x 11.0 x 1.1 mm (max.); nickel strap, 0.13 mm.
| Category | |
| Manufacturer | OptiFuse |
| Model | RASR |
| Hold Current (A) | 2.00 |
| Trip Current (A) | 4.40 |
| Max Voltage | 30 VDC |
| Max Fault Current (A) | 100 |
| Time to Trip | max. 4.0 s at 5 x IH |
| Power Dissipation (W) | 1.9 |
| Min Resistance (Ω) | 0.030 |
| Max Resistance (Ω) | 0.060 |
| Max Resistance 1 h After Trip (Ω) | 0.100 |
| Mounting Style | Battery Strap |
| Size | 23.4 x 11.0 x 1.1 mm (max.) |
| Lead Material | Nickel strap, 0.13 mm |
| Operating Temperature (°C) | -40 to +85 |
