To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | MXG-1.5A |
| Description | Axial Fuse; 1.5 A; Med Lag; 2.7x7.3mm; Axial; Ammo Pack; 250 VAC |
| Datasheet | Download Datasheet |

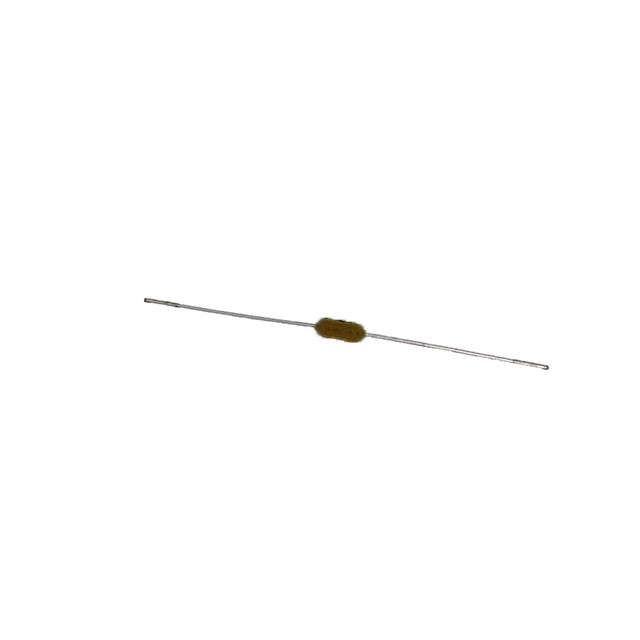

The OptiFuse MXG-1.5A is a 1.5 A medium time-lag subminiature axial fuse with a 2.7 x 7.3 mm epoxy-coated body, rated 250 VAC, supplied taped in an ammo pack.
Medium time-lag sits between fast-acting and time-delay: it tolerates modest inrush while still clearing an overload quickly. Its leads come out of each end for through-hole mounting or automatic insertion; each lead is 28 mm (1.10 in) long.
Breaking capacity: 50 A @ 250 VAC. Opening times, as a percentage of the rated current: 100%: min. 4 h; 200%: max. 20 s. Typical melting I²t 1.922 A²s.
| Category | |
| Manufacturer | OptiFuse |
| Model | MXG |
| Current Rating (A) | 1.5 |
| Size | 2.7 x 7.3 mm |
| Speed | Medium Time-Lag |
| Voltage Rating | 250 VAC |
| Breaking Capacity | 50 A @ 250 VAC |
| Body Material | Epoxy coated |
| Mounting Style | Axial Lead (Through-Hole) |
| Lead Length | 28 mm (1.10 in) |
| Packaging | Taped, Ammo Pack |
| Opening Time | 100%: min. 4 h; 200%: max. 20 s |
| Melting I²t (A²s) | 1.922 |
