To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | PVC-01 |
| Description | Fuse Holder; 5x20mm; PCB; 6.3A; 250 VAC |
| Datasheet | Download Datasheet |

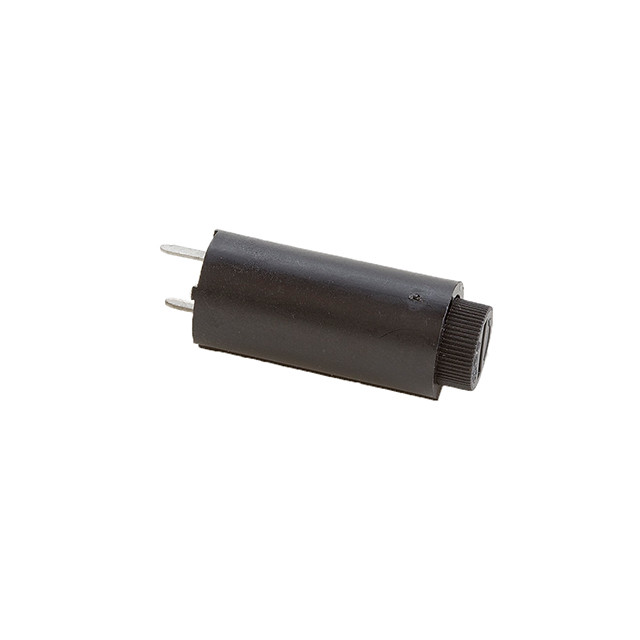

The OptiFuse PVC-01 is a PCB fuse holder for 5 x 20 mm glass / ceramic fuses, rated 6.3 A at 250 VAC.
Cap: finger grip / screwdriver slot, bayonet. Mounting: PCB through-hole. Panel thickness: 0.8 - 4.5 mm. Terminals: PCB pins.
Construction: thermoplastic (UL 94V-0); nickel-plated copper alloy contacts.
Approvals: UL Recognized, CSA, CE, S Mark, VDE.
| Category | |
| Manufacturer | OptiFuse |
| Part Status | Discontinued |
| Fuse Type | 5 x 20 mm glass / ceramic |
| Holder Type | PCB fuse holder |
| Max Current (A) | 6.3 |
| Voltage Rating | 250 VAC |
| Terminal Type | PCB pins |
| Mounting | PCB through-hole |
| Cap Style | Finger grip / screwdriver slot, bayonet |
| Panel Thickness | 0.8 - 4.5 mm |
| Housing Material | Thermoplastic (UL 94V-0) |
| Contact Material | Nickel-plated copper alloy |
| Approvals | UL Recognized, CSA, CE, S Mark, VDE |
