To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | PMG-KB-02-Q2S |
| Description | Fuse Holder; Midget 10x38; Panel Mount; 30 A; 600 VAC; .250 QC; Knob/Bayonet; 22.5mm |
| Datasheet | Download Datasheet |

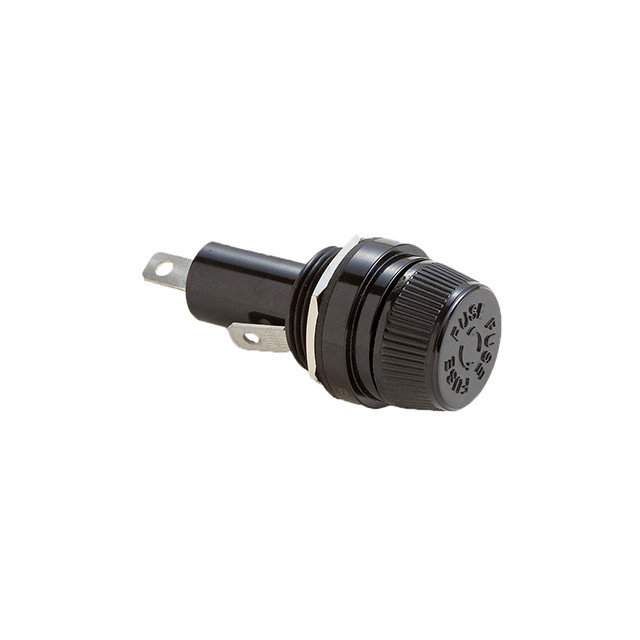

The OptiFuse PMG-KB-02-Q2S is a panel-mount fuse holder for 10.3 x 38 mm (13/32 x 1-1/2 in) midget fuses, rated 30 A at 600 VAC.
Cap: knob / bayonet. Mounting: panel, threaded body and nut. Panel hole: Dia. 0.89 in (22.5 mm), for panels 0.5 - 7 mm. Terminals: solder / 0.250 in (6.4 mm) quick-connect.
Construction: bakelite; nickel-plated copper alloy contacts.
Approvals: cULus.
| Category | |
| Manufacturer | OptiFuse |
| Fuse Type | 10.3 x 38 mm (13/32 x 1-1/2 in) midget |
| Holder Type | Panel-mount fuse holder |
| Max Current (A) | 30 |
| Voltage Rating | 600 VAC |
| Terminal Type | Solder / 0.250 in (6.4 mm) quick-connect |
| Mounting | Panel, threaded body and nut |
| Cap Style | Knob / Bayonet |
| Panel Cutout | Dia. 0.89 in (22.5 mm) |
| Panel Thickness | 0.5 - 7 mm |
| Housing Material | Bakelite |
| Contact Material | Nickel-plated copper alloy |
| Approvals | cULus |
