To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | PMC-KB-06-Q1S |
| Description | Fuse Holder; 5x20mm; Panel; 15 A; 250 VAC; .187 QC; Knob/Bayonet; 15.2mm Hole |
| Datasheet | Download Datasheet |

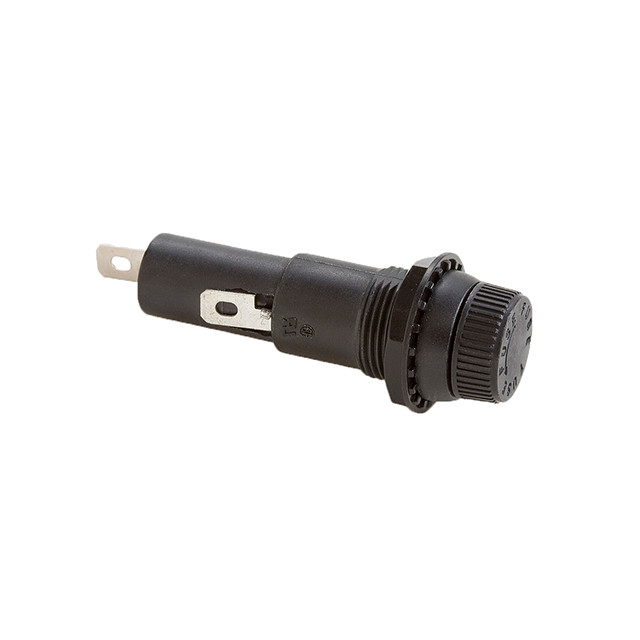

The OptiFuse PMC-KB-06-Q1S is a panel-mount fuse holder for 5 x 20 mm glass / ceramic fuses, rated 15 A at 250 VAC.
Cap: knob / bayonet. Mounting: panel, threaded body and nut. Panel hole: Dia. 0.60 in (15.2 mm), for panels 0.5 - 4.5 mm. Terminals: solder / 0.187 in (4.8 mm) quick-connect.
Construction: phenolic (UL 94V-1) body, PBT (UL 94V-0) cap; tin-plated brass contacts.
Approvals: cULus.
| Category | |
| Manufacturer | OptiFuse |
| Fuse Type | 5 x 20 mm glass / ceramic |
| Holder Type | Panel-mount fuse holder |
| Max Current (A) | 15 |
| Voltage Rating | 250 VAC |
| Terminal Type | Solder / 0.187 in (4.8 mm) quick-connect |
| Mounting | Panel, threaded body and nut |
| Cap Style | Knob / Bayonet |
| Panel Cutout | Dia. 0.60 in (15.2 mm) |
| Panel Thickness | 0.5 - 4.5 mm |
| Housing Material | Phenolic (UL 94V-1) body, PBT (UL 94V-0) cap |
| Contact Material | Tin-plated brass |
| Approvals | cULus |
