To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | PMC-DS-01-SOS |
| Description | Fuse Holder; 5x20mm; Panel; 6.3/10A; 6.3 A; 250 VAC; Sldr; Driver/Screw; 11.2mm Hole |
| Datasheet | Download Datasheet |

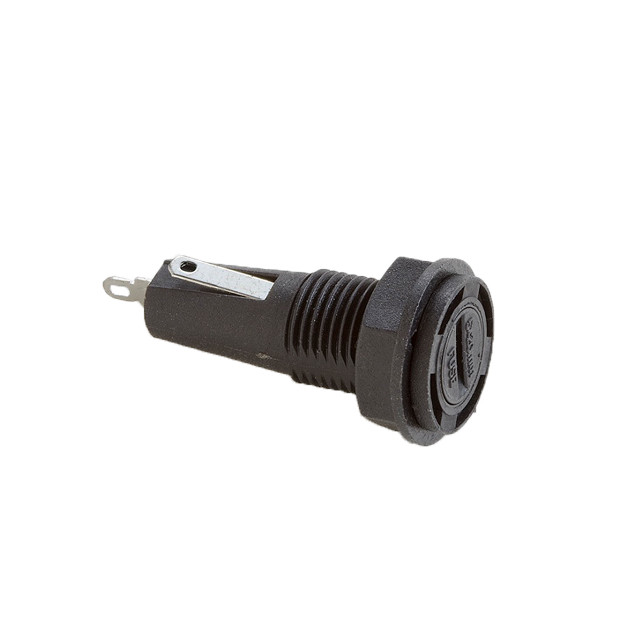

The OptiFuse PMC-DS-01-SOS is a panel-mount fuse holder for 5 x 20 mm glass / ceramic fuses, rated 6.3 A at 250 VAC.
Ratings: 6.3 A @ 250 VAC; 10 A @ 125 VAC. Cap: driver / screw. Mounting: panel, nylon hex nut. Panel hole: Dia. 0.44 in (11.2 mm). Terminals: solder tab, 0.156 in (4.0 mm).
Construction: nylon; nickel-plated copper alloy contacts.
Approvals: cULus.
| Category | |
| Manufacturer | OptiFuse |
| Fuse Type | 5 x 20 mm glass / ceramic |
| Holder Type | Panel-mount fuse holder |
| Max Current (A) | 6.3 |
| Circuit Ratings | 6.3 A @ 250 VAC; 10 A @ 125 VAC |
| Voltage Rating | 250 VAC |
| Terminal Type | Solder tab, 0.156 in (4.0 mm) |
| Mounting | Panel, nylon hex nut |
| Cap Style | Driver / Screw |
| Panel Cutout | Dia. 0.44 in (11.2 mm) |
| Housing Material | Nylon |
| Contact Material | Nickel-plated copper alloy |
| Approvals | cULus |
