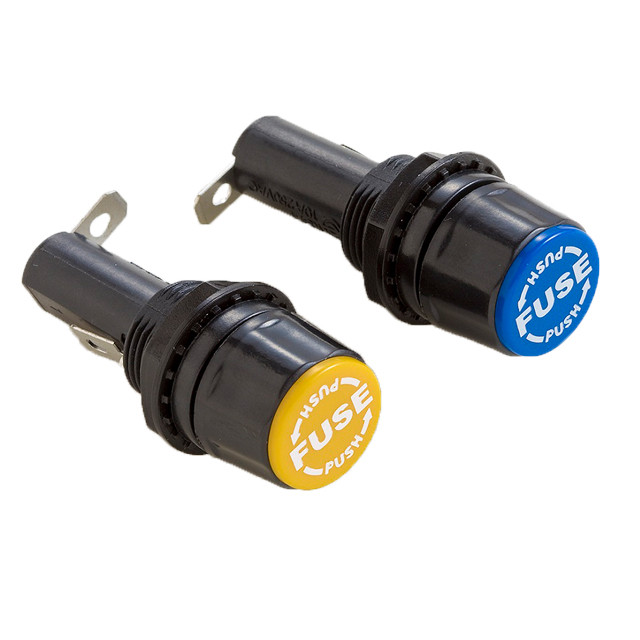

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | PMA-KB-07-Q1R-BK |
| Description | Fuse Holder; 6.3x32mm; Panel; 10 A; 250 VAC; .187 QC; Knob/Bayonet; Black Cap; 15mm |
| Datasheet | Download Datasheet |
The OptiFuse PMA-KB-07-Q1R-BK is a panel-mount fuse holder for 6.3 x 32 mm (1/4 x 1-1/4 in) glass / ceramic fuses, rated 10 A at 250 VAC.
Cap: knob / bayonet, black. Mounting: panel, threaded body and nut. Panel hole: Dia. 0.59 in (15 mm), 0.53 in (13.5 mm) across flat, for panels 0.5 - 4.5 mm. Terminals: solder / 0.187 in (4.8 mm) quick-connect.
Construction: PBT (UL 94V-0); tin-plated brass contacts.
Approvals: cULus.
| Category | |
| Manufacturer | OptiFuse |
| Part Status | Discontinued |
| Fuse Type | 6.3 x 32 mm (1/4 x 1-1/4 in) glass / ceramic |
| Holder Type | Panel-mount fuse holder |
| Max Current (A) | 10 |
| Voltage Rating | 250 VAC |
| Terminal Type | Solder / 0.187 in (4.8 mm) quick-connect |
| Mounting | Panel, threaded body and nut |
| Cap Style | Knob / Bayonet |
| Panel Cutout | Dia. 0.59 in (15 mm), 0.53 in (13.5 mm) across flat |
| Panel Thickness | 0.5 - 4.5 mm |
| Cap Color | Black |
| Housing Material | PBT (UL 94V-0) |
| Contact Material | Tin-plated brass |
| Approvals | cULus |
