To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | PMA-DS-09-Q2S |
| Description | Fuse Holder; 6.3x32mm; Panel; 10 A; 250 VAC; .250 QC; Driver/Screw; 14.2mm Hole |
| Datasheet | Download Datasheet |

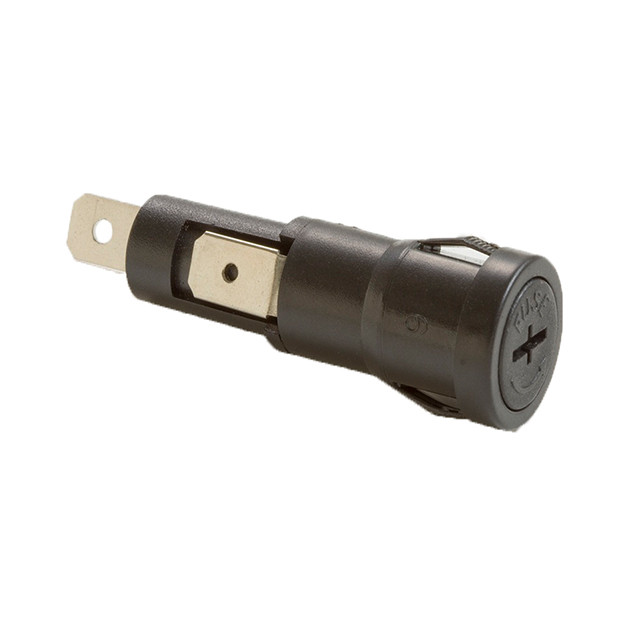

The OptiFuse PMA-DS-09-Q2S is a panel-mount fuse holder for 6.3 x 32 mm (1/4 x 1-1/4 in) glass / ceramic fuses, rated 10 A at 250 VAC.
Cap: driver / screw. Mounting: panel, threaded body and nut. Panel hole: Dia. 0.56 in (14.2 mm). Terminals: solder / 0.250 in (6.4 mm) quick-connect.
Construction: polycarbonate (UL 94V-2) body, PBT (UL 94V-0) cap; nickel-plated brass contacts.
| Category | |
| Manufacturer | OptiFuse |
| Fuse Type | 6.3 x 32 mm (1/4 x 1-1/4 in) glass / ceramic |
| Holder Type | Panel-mount fuse holder |
| Max Current (A) | 10 |
| Voltage Rating | 250 VAC |
| Terminal Type | Solder / 0.250 in (6.4 mm) quick-connect |
| Mounting | Panel, threaded body and nut |
| Cap Style | Driver / Screw |
| Panel Cutout | Dia. 0.56 in (14.2 mm) |
| Housing Material | Polycarbonate (UL 94V-2) body, PBT (UL 94V-0) cap |
| Contact Material | Nickel-plated brass |
