| Manufacturer | OptiFuse |
| Manufacturer Product Number | PMA-DS-07-SOS |
| Description | Fuse Holder; 6.3x32mm; Panel; 20 A; 250 VAC; Solder; Drv/Scr; 16mm Hole |
| Datasheet | Download Datasheet |

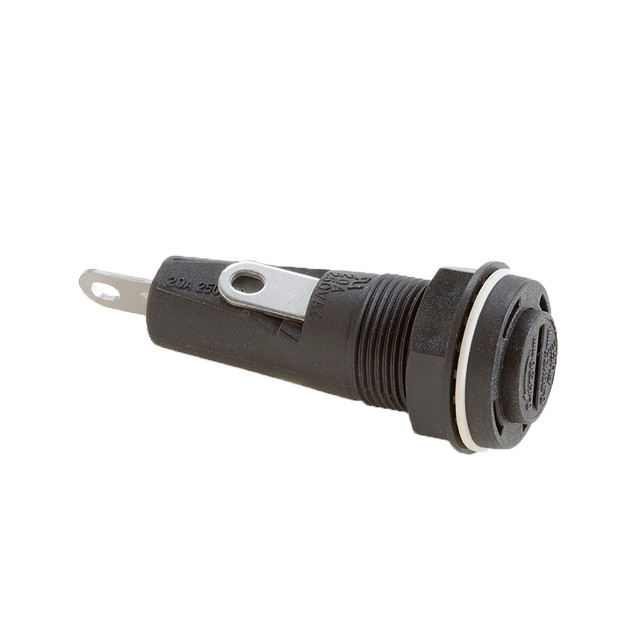

The OptiFuse PMA-DS-07-SOS is a panel-mount fuse holder for 6.3 x 32 mm (1/4 x 1-1/4 in) glass / ceramic fuses, rated 20 A at 250 VAC.
Cap: driver / screw. Mounting: panel, threaded body and nut. Panel hole: Dia. 0.63 in (16 mm), for panels 0.5 - 7 mm. Terminals: solder, 0.250 in (6.4 mm).
Construction: nylon (UL 94V-2); nickel-plated brass contacts.
Approvals: cULus.
| Category | |
| Manufacturer | OptiFuse |
| Fuse Type | 6.3 x 32 mm (1/4 x 1-1/4 in) glass / ceramic |
| Holder Type | Panel-mount fuse holder |
| Max Current (A) | 20 |
| Voltage Rating | 250 VAC |
| Terminal Type | Solder, 0.250 in (6.4 mm) |
| Mounting | Panel, threaded body and nut |
| Cap Style | Driver / Screw |
| Panel Cutout | Dia. 0.63 in (16 mm) |
| Panel Thickness | 0.5 - 7 mm |
| Housing Material | Nylon (UL 94V-2) |
| Contact Material | Nickel-plated brass |
| Approvals | cULus |
