To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | BPK-503 |
| Description | Fuse Block; Midget 10x38; 3P; IP20; 30 A; 1000 VDC |
| Datasheet | Download Datasheet |

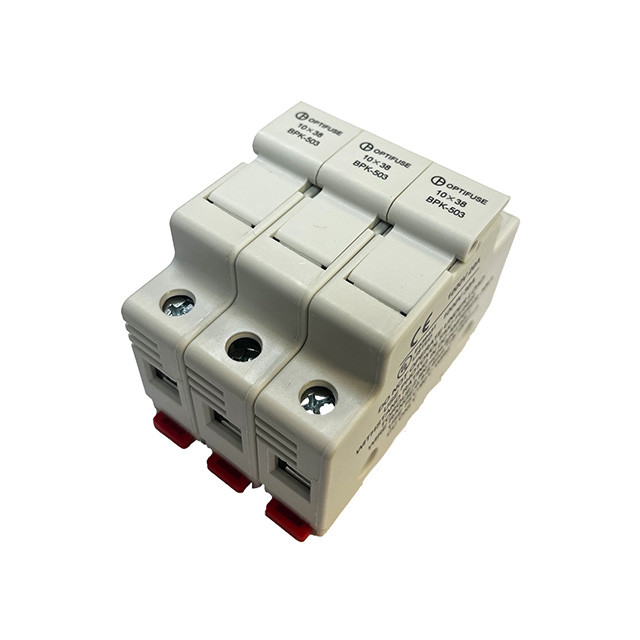

The OptiFuse BPK-503 is a 3-position midget fuse block for midget 10 x 38 mm fuses, rated 30 A, 1000 VDC.
Interrupting rating 30 kA. Sealing: IP20.
Construction: thermoplastic (UL 94V-0); copper clips, steel terminals contacts; operating temperature -40 to +90 °C.
Approvals: UL Listed, UL file E539431.
| Category | |
| Manufacturer | OptiFuse |
| Fuse Type | Midget 10 x 38 mm |
| Holder Type | Midget fuse block |
| Positions | 3 |
| Max Current (A) | 30 |
| Voltage Rating | 1000 VDC |
| Interrupting Rating | 30 kA |
| IP Rating | IP20 |
| Housing Material | Thermoplastic (UL 94V-0) |
| Contact Material | Copper clips, steel terminals |
| Approvals | UL Listed |
| UL File Number | E539431 |
| Operating Temperature (°C) | -40 to +90 |
