To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | FXG-6.3A-TR |
| Description | Axial Fuse; 6.3 A; Fast-Acting; 2.7x7.3mm; Axial; Tape & Reel; 250 VAC; 125 VDC; cURus/CSA |
| Datasheet | Download Datasheet |

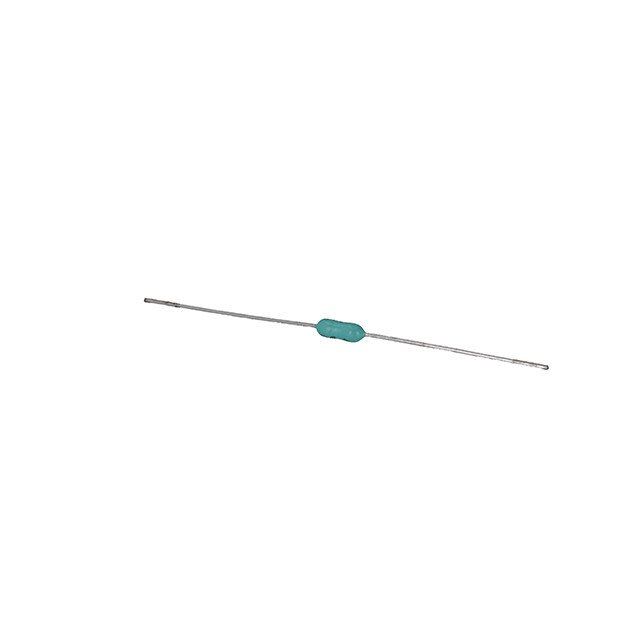

The OptiFuse FXG-6.3A-TR is a 6.3 A fast-acting subminiature axial fuse with a 2.7 x 7.3 mm epoxy-coated body, rated 250 VAC / 125 VDC, supplied on tape and reel.
A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge. Its leads come out of each end for through-hole mounting or automatic insertion; each lead is 28 mm (1.10 in) long.
Breaking capacity: 30 A @ 250 VAC; 30 A @ 125 VAC; 50 A @ 125 VDC. Opening times, as a percentage of the rated current: 100%: min. 4 h; 200%: max. 20 s. Typical melting I²t 8.075 A²s. It operates from -55 to +125 °C.
Approvals: cURus Recognized, CSA.
| Category | |
| Manufacturer | OptiFuse |
| Model | FXG |
| Current Rating (A) | 6.3 |
| Size | 2.7 x 7.3 mm |
| Speed | Fast-Acting |
| Voltage Rating | 250 VAC; 125 VDC |
| Breaking Capacity | 30 A @ 250 VAC; 30 A @ 125 VAC; 50 A @ 125 VDC |
| Body Material | Epoxy coated |
| Mounting Style | Axial Lead (Through-Hole) |
| Lead Length | 28 mm (1.10 in) |
| Packaging | Tape & Reel |
| Approvals | cURus Recognized, CSA |
| Opening Time | 100%: min. 4 h; 200%: max. 20 s |
| Melting I²t (A²s) | 8.075 |
| Operating Temperature (°C) | -55 to +125 |
