To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | FSC-P-6.3A |
| Description | Glass Fuse; 6.3 A; Fast-Acting; 5x20mm; Pigtail; UL 248-14; 250 VAC |
| Datasheet | Download Datasheet |

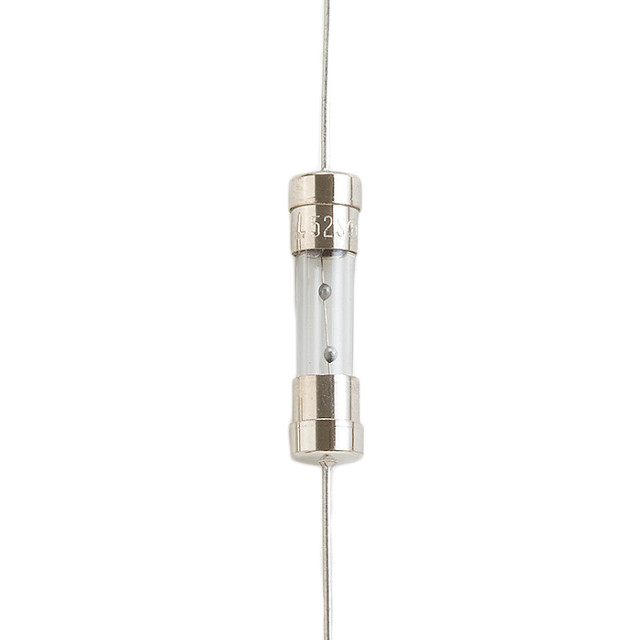

The OptiFuse FSC-P-6.3A is a 6.3 A fast-acting glass fuse in the 5 x 20 mm size, with axial leads (pigtails), rated 250 VAC.
A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge. The axial leads solder straight to a board or terminal strip, with no holder.
Breaking capacity: 10kA @ 125 VAC; 200 A @ 250 VAC; 500 A @ 125 VAC PSE; 100 A @ 250 VAC PSE; 100 A @ 250 VAC KC. Typical cold resistance 0.0137 Ω, melting I²t 59.24 A²s. It operates from -55 to +125 °C.
Construction: glass body.
It is cULus Listed (UL file E197390). Standards: UL 248-14, CSA C22.2 No. 248.14.
| Category | |
| Manufacturer | OptiFuse |
| Model | FSC |
| Current Rating (A) | 6.3 |
| Size | 5 x 20 mm |
| Speed | Fast-Acting |
| Voltage Rating | 250 VAC |
| Breaking Capacity | 10kA @ 125 VAC; 200 A @ 250 VAC; 500 A @ 125 VAC PSE; 100 A @ 250 VAC PSE; 100 A @ 250 VAC KC |
| Body Material | Glass |
| Mounting Style | Axial Lead (Pigtail) |
| Approvals | cULus Listed |
| UL File Number | E197390 |
| Standards | UL 248-14, CSA C22.2 No. 248.14 |
| Melting I²t (A²s) | 59.24 |
| Cold Resistance (Ω) | 0.0137 |
| Operating Temperature (°C) | -55 to +125 |
