To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | FCD-400mA |
| Description | Ceramic Fuse; 0.4 A; Fast; 5x20mm; IEC 60127; 250 VAC/DC |
| Datasheet | Download Datasheet |

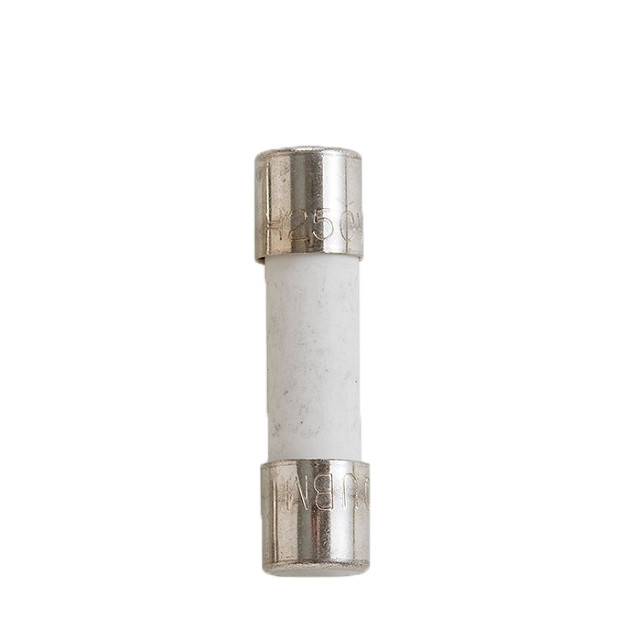

The OptiFuse FCD-400MA is a 400 mA fast-acting ceramic cartridge fuse in the 5 x 20 mm size, rated 250 VAC/DC.
A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge. It fits standard fuse clips and holders of the same size.
Breaking capacity: 10kA; 1500 A @ 250 VAC; 1000 A @ 250 VDC. Opening times, as a percentage of the rated current: 210%: max. 30 min; 275%: 10ms to 2 s; 400%: 3ms to 300ms; 1000%: max. 20ms. Typical cold resistance 2.0600 Ω, melting I²t 0.0200 A²s. It operates from -55 to +125 °C.
Construction: ceramic body.
It is cURus Recognized (UL file E197390). Standards: IEC 60127.
| Category | |
| Manufacturer | OptiFuse |
| Model | FCD |
| Current Rating (A) | 0.4 |
| Size | 5 x 20 mm |
| Speed | Fast-Acting |
| Voltage Rating | 250 VAC/DC |
| Breaking Capacity | 10kA; 1500 A @ 250 VAC; 1000 A @ 250 VDC |
| Body Material | Ceramic |
| Mounting Style | Cartridge |
| Approvals | cURus Recognized |
| UL File Number | E197390 |
| Standards | IEC 60127 |
| Opening Time | 210%: max. 30 min; 275%: 10ms to 2 s; 400%: 3ms to 300ms; 1000%: max. 20ms |
| Melting I²t (A²s) | 0.0200 |
| Cold Resistance (Ω) | 2.0600 |
| Operating Temperature (°C) | -55 to +125 |
