To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | FCC-P-400mA |
| Description | Ceramic Fuse; 0.4 A; Fast; 5x20mm; Pigtail; UL 248-14; 250 VAC/DC |
| Datasheet | Download Datasheet |

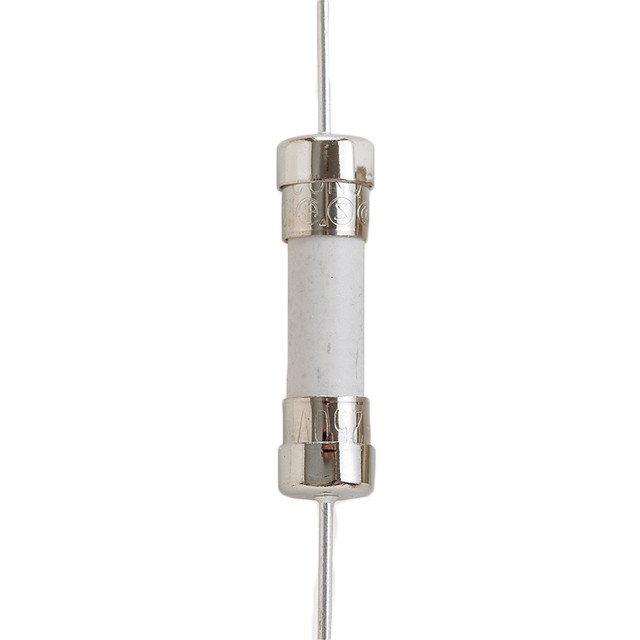

The OptiFuse FCC-P-400MA is a 400 mA fast-acting ceramic fuse in the 5 x 20 mm size, with axial leads (pigtails), rated 250 VAC/DC.
A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge. The axial leads solder straight to a board or terminal strip, with no holder.
Breaking capacity: 10kA @ 125 VAC; 35 A @ 250 VAC. Typical melting I²t 0.0561 A²s. It operates from -55 to +125 °C.
Construction: ceramic body.
UL file E197390. Standards: UL 248-14, CSA C22.2 No. 248.14.
| Category | |
| Manufacturer | OptiFuse |
| Model | FCC |
| Part Status | Discontinued |
| Current Rating (A) | 0.4 |
| Size | 5 x 20 mm |
| Speed | Fast-Acting |
| Voltage Rating | 250 VAC/DC |
| Breaking Capacity | 10kA @ 125 VAC; 35 A @ 250 VAC |
| Body Material | Ceramic |
| Mounting Style | Axial Lead (Pigtail) |
| UL File Number | E197390 |
| Standards | UL 248-14, CSA C22.2 No. 248.14 |
| Melting I²t (A²s) | 0.0561 |
| Operating Temperature (°C) | -55 to +125 |
