To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Manufacturer Product Number | F0603-5A |
| Description | Micro Fuse; 5 A; Fast-Acting; 0603; SMD; 32 VAC / 32 VDC |
| Datasheet | Download Datasheet |

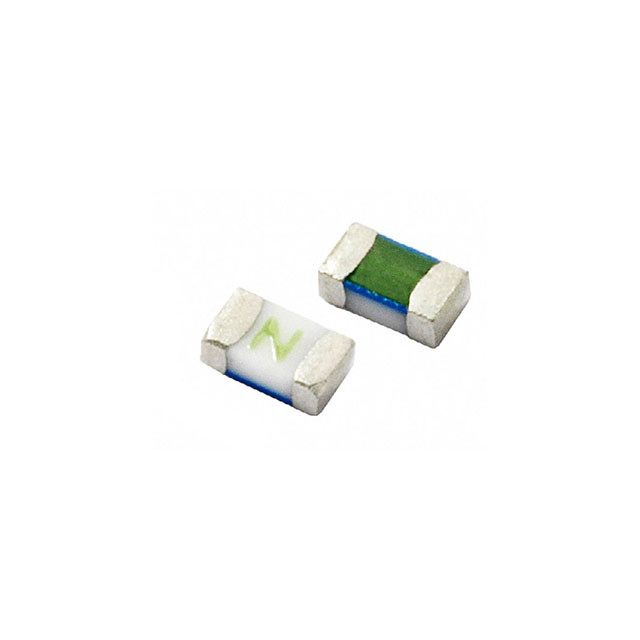

The OptiFuse F0603-5A is a 5 A fast-acting 0603 surface-mount chip fuse, rated 32 VAC / 32 VDC.
A fast-acting fuse opens quickly on an overload, for resistive and lightly loaded circuits with little switch-on surge. It is a 0603 (1608 metric) package for reflow soldering, supplied on tape & reel, 5,000 per reel.
Breaking capacity: 35 A @ 32 VAC; 35 A @ 32 VDC. Opening times, as a percentage of the rated current: 100%: min. 4 h; 350%: max. 1 s. Typical cold resistance 0.0105 Ω, melting I²t 1.100 A²s. It operates from -55 to +90 °C.
Approvals: cURus Recognized, TÜV.
| Category | |
| Manufacturer | OptiFuse |
| Model | F0603 |
| Current Rating (A) | 5 |
| Size | 0603 (1608 metric) |
| Speed | Fast-Acting |
| Voltage Rating | 32 VAC / 32 VDC |
| Breaking Capacity | 35 A @ 32 VAC; 35 A @ 32 VDC |
| Mounting Style | Surface Mount |
| Packaging | Tape & reel, 5,000 per reel |
| Approvals | cURus Recognized, TÜV |
| Opening Time | 100%: min. 4 h; 350%: max. 1 s |
| Melting I²t (A²s) | 1.100 |
| Cold Resistance (Ω) | 0.0105 |
| Operating Temperature (°C) | -55 to +90 |
