To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | OptiFuse |
| Model | CBW58 |
| Manufacturer Product Number | CBW58-QB-13A |
| Description | Thermal Circuit Breaker; 13 A; 125/250 VAC; 32/50 VDC; M12 x 1.0; 90° Bend; Black |
| Datasheet | Download Datasheet |

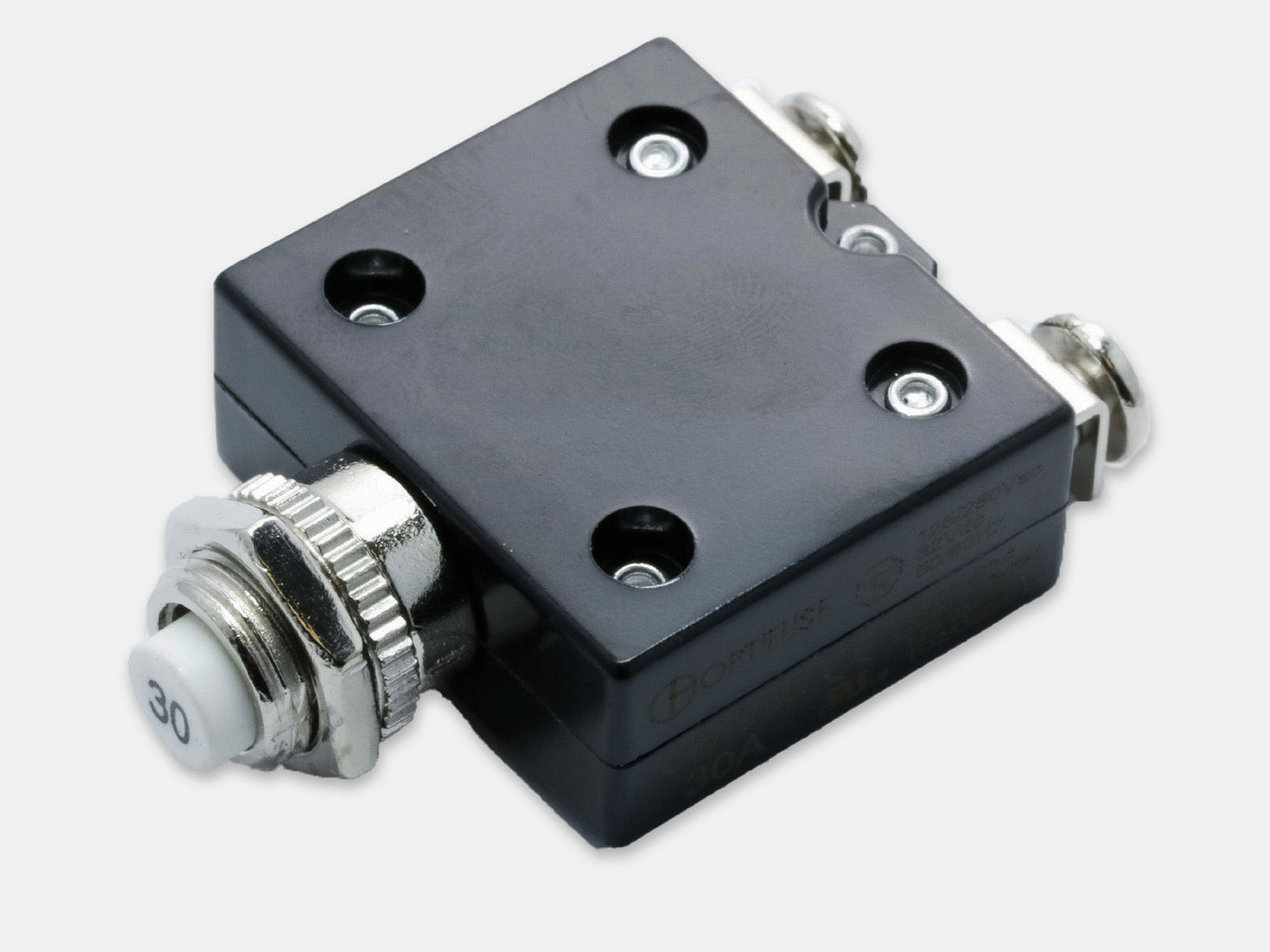

The OptiFuse CBW58-QB-13A is a 13 A standard profile thermal circuit breaker, push to reset, rated 125/250 VAC and 32/50 VDC.
It mounts through the panel on a 12.6 mm high plastic M12 x 1.0 threaded bushing, in a 11.8 mm diameter, 10.7 mm across flat cutout, and is held by a metal knurled nut.
Its terminals are 90° Bend 0.250 in (6.35 mm) quick connect tabs; the reset button is black.
It interrupts 1000 A @ 125/250 VAC (3-50 A), 400 A @ 125/250 VAC (3-30 A), 300 A @ 50 VDC (3-50 A). Trip times at 25 °C, as a share of the rating: 100%: no trip; 150%: trips within 1 hour; 200%: 5-28 s (3-30 A), 7.8-40 s (31-50 A); 300%: 1.8-5.5 s (3-30 A), 3.2-7.7 s (31-50 A). It operates from -10 to +60 °C.
It is ignition protected to SAE J1171 and UL 1500, for marine engine compartments. Approvals: cURus (UR), RoHS Compliant.
Typical uses: supplementary overcurrent protection for equipment on utility power or high-current AC/DC circuits: industrial equipment, motor homes and marine.
