Description: Snap-Action Switches Circuit: SPST-NO Switch Function: Off-Mom Current Rating (Amps): 6A (AC/DC) Voltage Rating - AC: 250 V Voltage Rating - DC: 30 V Actuator Type: Pin Plunger Mounting Type: Chassis Mount Termination Style: Quick Connect - 0.187" (4.7mm)

Product Information

Resources

Manufacturer	Omron
Product Category	Switches
Product Sub Category	Snap-Action Switches
Series	D3V Series

Download Datasheet

RoHS Compliant

Specifications

Product Attribute	Attribute Value
Circuit	SPST-NO
Switch Function	Off-Mom
Current Rating (Amps)	6A (AC/DC)
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V
Actuator Type	Pin Plunger
Mounting Type	Chassis Mount
Termination Style	Quick Connect - 0.187" (4.7mm)
Ingress Protection	IP40
Operating Force	100gf
Release Force	15gf
Pretravel	0.047" (1.2mm)
Differential Travel	0.012" (0.3mm)
Overtravel	0.040" (1.0mm)
Operating Temperature	-25°C ~ 85°C

Series Features

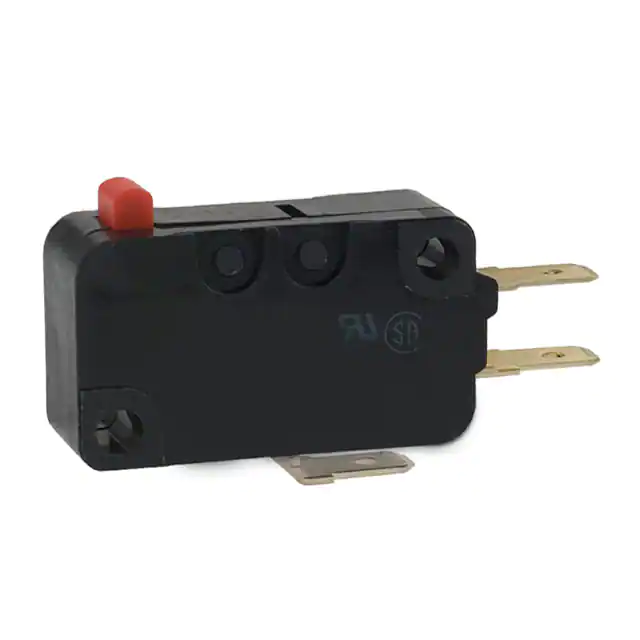

D3V Miniature Basic Switch

Series Description: Reliable Basic Switch with External Lever

Available by 21 A, 16 A, 11 A, 6 A and 0.1 A models, all with self-cleaning contacts.
Available with internally or externally fitted levers.

Shop by Category

Shop by Brand

D3V-6G-3C24-K

Omron
