Product Description
Description: Snap-Action Switches Circuit: SPDT Switch Function: On-Mom Current Rating (Amps): 100mA Voltage Rating: 30 VDC Actuator Type: Pin Plunger Mounting Type: Chassis Mount Termination Style: Wire Leads Ingress Protection: IP67 - Dust Tight, Waterproof
| Product Information | | Resources |
| Manufacturer | Omron | | Product Category | Switches | | Product Sub Category | Snap-Action Switches | | Series | D2VW Series |
| | |
Product Attribute
| Attribute Value
|
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 30 VDC |
| Actuator Type | Pin Plunger |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Force | 200gf |
| Release Force | 30gf |
| Pretravel | 0.047" (1.2mm) |
| Differential Travel | 0.016" (0.4mm) |
| Overtravel | 0.040" (1.0mm) |
| Operating Temperature | -40°C ~ 85°C |
| D2VW Sealed Miniature Basic Switch |
| Series Description: Sealed Miniature Basic Switch Conforms to IP67 (Excluding the terminals on terminal models) |
- Use of epoxy resin assures stable sealing, making this switch ideal for places subject to water spray or excessive dust.
- V-series internal mechanism assures high precision and long life.
- Ideal for automobiles, agricultural machines, large-scale home appliances, and industrial equipment, which require high environmental resistance.
- Models available with conformance to safety standards, including UL, CSA and VDE.
|

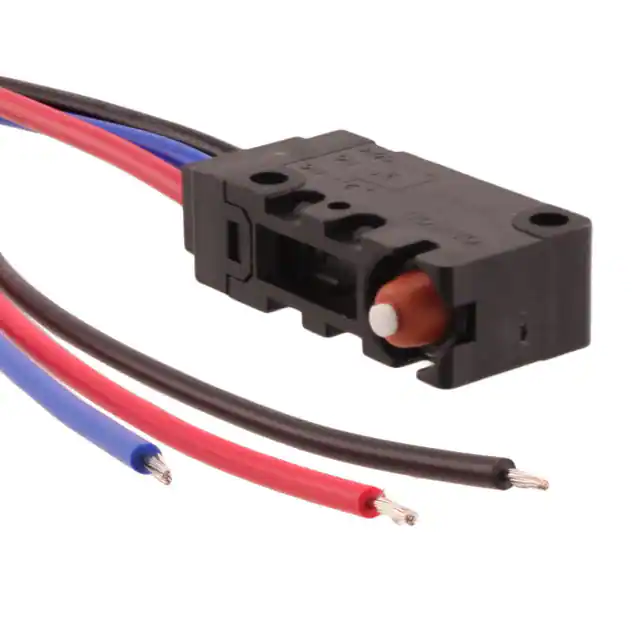

-1MSSERIES__46075.1682484126.png?c=1 "Omron Snap Action Switch")
-1MSSERIES__46075.1682484126.png?c=1 "Omron Snap Action Switch")
RoHS Compliant
