Product Description
| This product has been Discontinued |

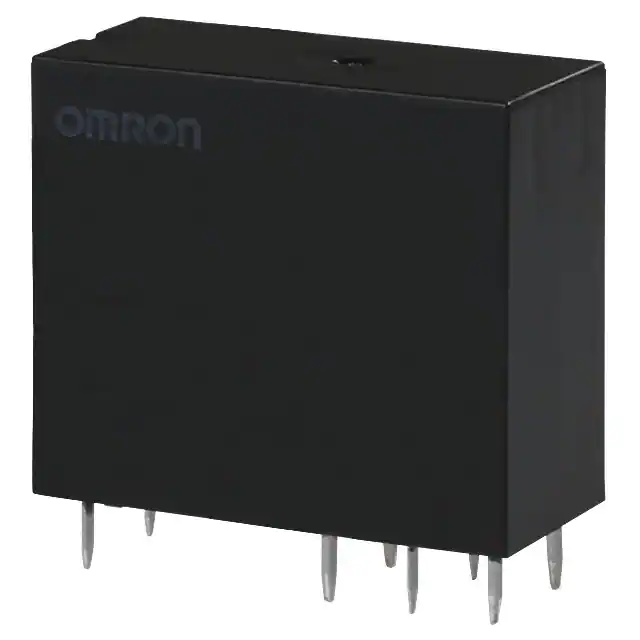

Description: Power Relay, 18 VDC, 4 Amps, DPDT (2 Form C), Through Hole, Non Latching
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 18 VDC |
| Contact Configuration | DPDT (2 Form C) |
| Contact Current | 4 Amps |
| Mounting Type | Through Hole |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Switching Voltage | 380VAC, 125VDC - Max |
| Coil Current | 29.4 mA |
| Seal Rating | Sealed - Fully |
| Must Operate Voltage | 12.6 VDC |
| Must Release Voltage | 2.7 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Alloy |
| Series Features |
| G2R PCB Power Relay |
| Series Description: The Best Seller G2R |
|
